CS-D3-COM-CS-19-PW-R2 Carli-SPEC Commuter System for 2019-2024 RAM Power Wagon 2500 4WD [R2 Coils]

Name: CS-D3-COM-CS-19-PW-R2 Carli-SPEC Commuter System for 2019-2024 RAM Power Wagon 2500 4WD [R2 Coils]
Brand: CARLI SUSPENSION
SKU: 252-D3COM19PWR2
Price: 4304.59 USD
Availability: InStock

^$4,304⁵⁹

Truck Freight

Ships on 09/14/2026

Lowest Price Guarantee

Ram

Carli-SPEC Commuter System

For 2019-2024 Ram 2500 Power Wagon 4WD

2.0" Front Lift

R2 Multi-Rate Rear Coils

Carli SPEC 2.0 IFP Shocks & Full Linkage Kit

Front Linear-Rate and Rear Multi-Rate Coil Springs

Designed for the daily-driven RAM Power Wagon, the Carli-SPEC Commuter 2.0 System with R2 coils offers a refined on-road experience and enhanced rear support for trucks that may carry additional weight or accessories. This system is built around internal reservoir shocks, Carli-tuned for everyday comfort and confidence, paired with R2 multi-rate coils to maintain consistent ride height under load. Whether you're commuting, towing, or exploring light trails, the Commuter R2 kit provides a reliable and composed ride across varying terrain.

Carli-SPEC CS-D3-COM-CS-19-PW-R2 Commuter System Features:

Dual-stage lift: Front Lift 1.5–2 in., Rear Lift 0.5–1 in.
Optimized travel: 9.6 in. Front, 11 in. Rear
2.0 in. Carli-SPEC IFP Shocks with 6063 Aluminum Bodies
Improved rear support and load handling with R2 Multi-Rate Coils

Carli-SPEC CS-D3-COM-CS-19-PW-R2 Commuter System Includes:

CS-DEL-R-14 – Rear Sway Bar End Links
CS-DFBD-1 – Front Bump Drops

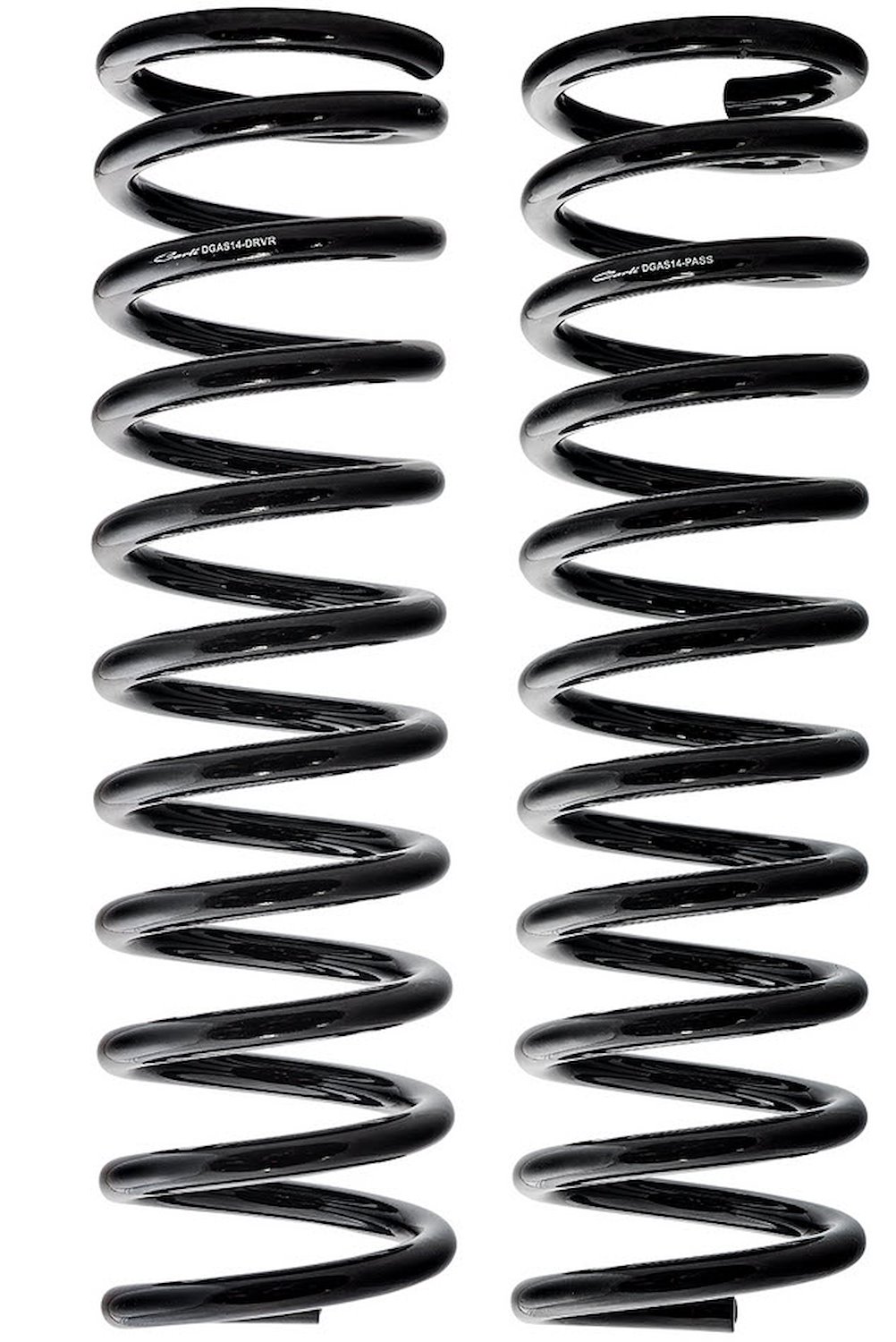

CS-DLRC-14-H – 3 in. Front Linear-Rate Coil Springs
CS-DMRC-14-R2 – Rear Multi-Rate Coil Springs, R2
CS-DATB-1419 – Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-1419 – Radius Arm Drops
CS-DRBD-AL – Rear Bump Drops
CS-DPRBDROP-14-R – Rear Track Bar Drop
CS-DPWSKIDBLK-14 – Power Wagon Skid Plate Drop Bracket
CS-DVDBRKT-19 – Hemi Active Tuned Mass Module Relocation
AS-D3SPKG-CS20IFP-F – Carli SPEC 2.0 in. Internal Reservoir Shocks, Front and Rear

Carli-SPEC CS-D3-COM-CS-19-PW-R2 Commuter System Required and Optional Components:

Sway Bar – OPTIONAL
- CS-DTSB3-1419 – 2014–2024 RAM 2500/3500 4X4 Torsion Sway Bar – 3 in. Lift
Fabricated Radius Arms – OPTIONAL
- CS-DFRA-14 – 2014–2024 2500/3500 4X4 Fabricated Radius Arm System – 3.25 in. Lift
Low Mount Steering Stabilizer – OPTIONAL
- CS-DLMSS-14 – 2014–2024 RAM 2500/3500 4X4 Low Mount Steering Stabilizer – Stainless Steel
High Mount Steering Stabilizer – OPTIONAL
- CS-DHMSS-19 – 2014–2024 RAM 2500/3500 4X4 High Mount Steering Stabilizer Kit – Lifted
Lifetime Ball Joints – OPTIONAL
- CS-DBJP-14 – 2013–2024 RAM 2500/3500 4X4 Extreme Duty Ball Joints, Upper & Lower

Optimized Ride Quality for Daily Driving

The Carli Suspension Commuter System is designed for those who spend most of their time on pavement but still want improved handling and ride quality over stock. It's a cost-effective upgrade that enhances comfort, control, and road manners for everyday use.

Part TypeSuspension Lift Kit

Product LineCarli Suspension Commuter System

BrandCARLI SUSPENSION

Package Height24.0

Package Width24.0

Package Length37.0

Weight299.0 PG

Part CategoryPerformance Parts

Hardware IncludedYes

PositionFront/Rear

QuantitySold as a kit

Amount Of Lift RearVariable
