Engineered for robust performance and enhanced responsiveness, the Dominator System with R2 Coils delivers a superior 2 in. lift solution for your 2019–2024 Power Wagon. Meticulously designed for optimal off-road capability, it offers improved travel and damping characteristics through its 3.0 in. King Remote Reservoir Shocks and innovative R2 coil setup. Experience elevated handling and durability, even in the most challenging terrains.

Carli Suspension CS-DD30-19-PW-R2 Dominator System Features:

• Dual-stage lift: Front Lift 2 in., Rear Lift 0.5 in. – 2 in.
• Optimized travel: 8.5 in. Front, 11 in. Rear
• 3.0 in. King Remote Reservoir Shocks for precise damping
• Enhanced suspension performance with R2 Coils for improved handling and durability

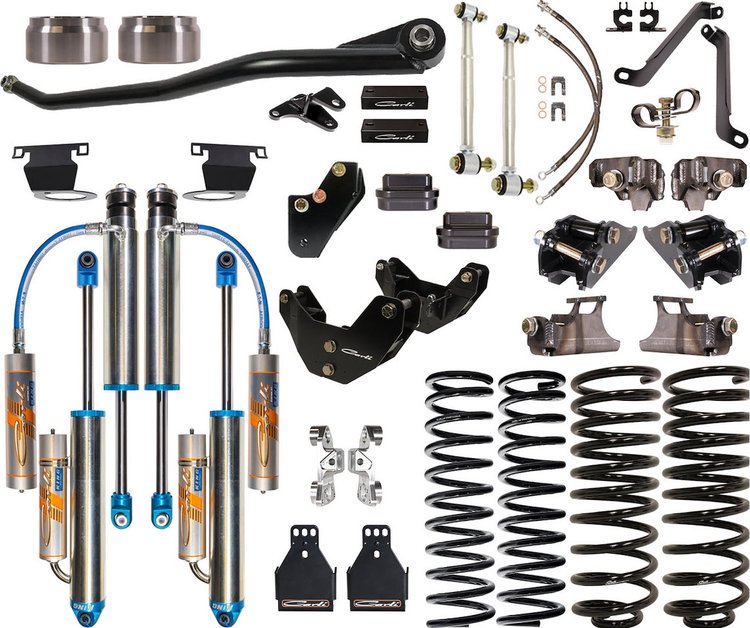

Carli Suspension CS-DD30-19-PW-R2 Dominator System Includes:

• CS-DEL-R-14 – Rear Sway Bar End Links
• CS-DFBD-1 – Front Bump Drops
• CS-DLRC-14-H – 3 in. Front Linear-Rate Coil Springs
• CS-DMRC-14-R2 – Rear Multi-Rate Coil Springs, R2
• CS-DATB-1419 – Adjustable Track Bar with Stabilizer Bracket
• CS-DRAD-1419 – Radius Arm Drops
• CS-DRBD-AL – Rear Bump Drops
• CS-DPRBDROP-14-R – Rear Track Bar Drop
• CS-DPWSKIDBLK-14 – Power Wagon Skid Plate Drop Bracket
• CS-DVDBRKT-19 – Hemi Active Tuned Mass Module Relocation
• CS-DD30SPKG-14-H – Carli Tuned King 3.0 in. Remote Reservoir Shock Package with Stainless Shafts, Reservoir Mounts, Brake Line Kit, Coil Isolator Supports, Front Lower Shock Mounts, Rear Upper and Lower Shock Mounts, Bed Supports and E-Brake Relocation Bracket

Carli Suspension CS-DD30-19-PW-R2 Dominator System Required and Optional Components:

• Sway Bar – OPTIONAL
  • CS-DTSB3-1419 – 2014-2024 RAM 2500/3500 4X4 Torsion Sway Bar – 3 in. Lift
• Fabricated Radius Arms – OPTIONAL
  • CS-DFRA-14 2014-2024 RAM 2500/3500 4X4 Fabricated Radius Arm System – 3.25 in. Lift
• Low Mount Steering Stabilizer – OPTIONAL
  • CS-DLMSS-14 – 2014-2024 RAM 2500/3500 4X4 Low Mount Steering Stabilizer – Stainless Steel
• High Mount Steering Stabilizer – OPTIONAL
  • CS-DHMSS-19 – 2019-2024 RAM 2500/3500 4X4 High Mount Steering Stabilizer Kit – Lifted
• Lifetime Ball Joints – OPTIONAL
  • CS-DBJP-14 – 2013-2024 RAM 2500/3500 4X4 Extreme Duty Ball Joints, Upper & Lower
