The Pintop is the Backcountry on steroids—a jack-of-all-trades suspension system every Ram owner can benefit from. Built with Carli-SPEC King 2.5 in. remote reservoir shocks and R2 Coils, it raises the platform to demonstrate that trucks should come equipped with 2.5 in. shocks from the factory. Custom-tuned with a bespoke piston and polished 17-4 stainless shafts, the system delivers unmatched performance and durability for heavy-duty use. Every element—from integrated sway bar solutions to precision track bar adjustments—works in harmony to redefine suspension excellence.

Carli-SPEC CS-DPT25-19-PW-R2 Pintop System Features:

• Dual-stage lift: Front Lift 2 in., Rear Lift 0.5 in. – 2 in.
• Optimized travel: 9.3 in. Front, 11 in. Rear
• 2.5 in. King Remote Reservoir Shocks for consistent damping
• Enhanced suspension tuning with R2 Coils for improved balance

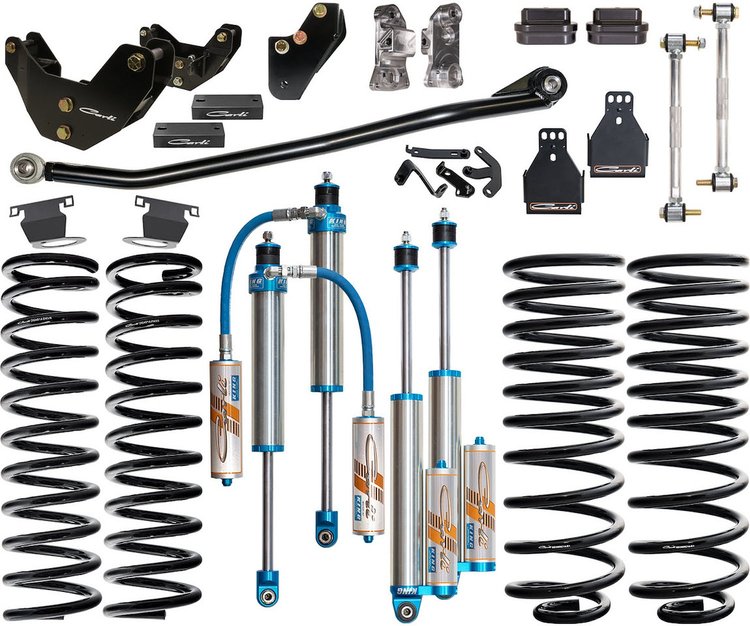

Carli-SPEC CS-DPT25-19-PW-R2 Pintop System Includes:

• CS-DEL-R-14 – Rear Sway Bar End Links
• CS-DFBD-1 – Front Bump Drops
• CS-DLRC-14-H – 3 in. Front Linear-Rate Coil Springs
• CS-DMRC-14-R2 – Rear Multi-Rate Coil Springs, R2

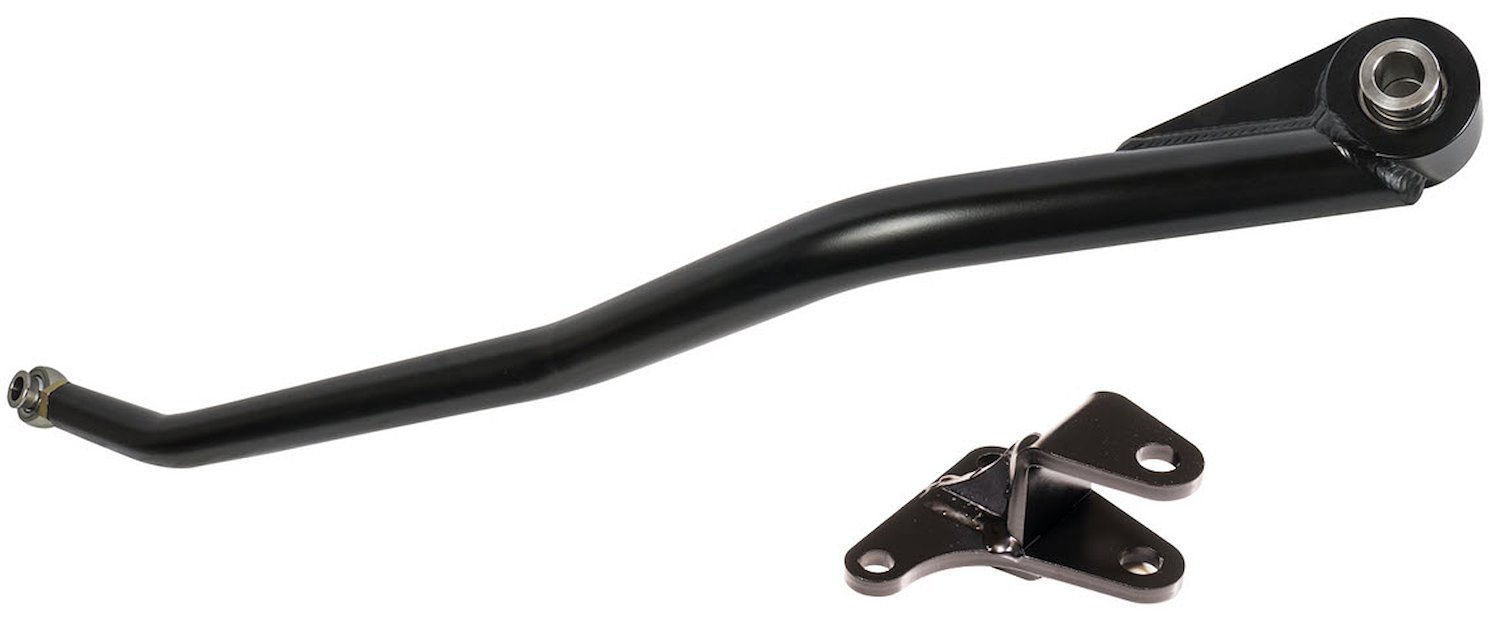

• CS-DATB-1419 – Adjustable Track Bar with Stabilizer Bracket
• CS-DRAD-1419 – Radius Arm Drops
• CS-DRBD-AL – Rear Bump Drops
• CS-DPRBDROP-14-R – Rear Track Bar Drop
• CS-DPWSKIDBLK-14 – Power Wagon Skid Plate Drop Bracket
• CS-DVDBRKT-19 – Hemi Active Tuned Mass Module Relocation
• CS-DPT25SPKG-14-H – Carli Tuned King 2.5 in. Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs

Carli-SPEC CS-DPT25-19-PW-R2 Pintop System Required and Optional Components:

• Sway Bar – OPTIONAL
  • CS-DTSB3-1419 – 2014-2024 RAM 2500/3500 4X4 Torsion Sway Bar – 3 in. Lift
• Fabricated Radius Arms – OPTIONAL
  • CS-DFRA-14 - 2014-2024 2500/3500 4X4 Fabricated Radius Arm System – 3.25 in. Lift
• Low Mount Steering Stabilizer – OPTIONAL
  • CS-DLMSS-14 – 2014-2024 RAM 2500/3500 4X4 Low Mount Steering Stabilizer – Stainless Steel
• High Mount Steering Stabilizer – OPTIONAL
  • CS-DHMSS-19 – 2014-2024 RAM 2500/3500 4X4 High Mount Steering Stabilizer Kit – Lifted
• Lifetime Ball Joints – OPTIONAL
  • CS-DBJP-14 – 2013-2024 RAM 2500/3500 4X4 Extreme Duty Ball Joints, Upper & Lower
