Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford/Mercury

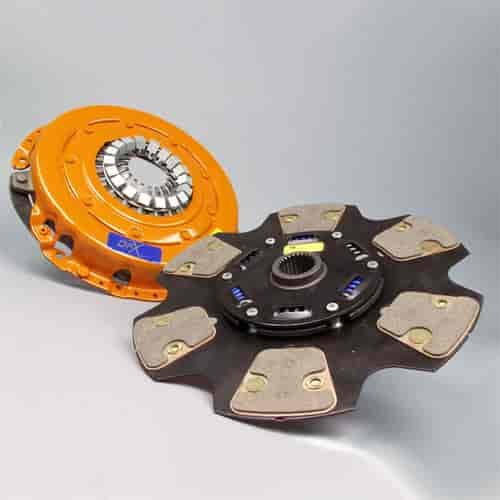

DFX Clutch KitIncludes Pressure Plate And Disc Pressure Plate: 10.4" Diameter Disc: 1 1/8"-26 Spline
CENTERFORCE/MIDWAY INDUSTRIES 01161830 Features:
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.The Centerforce DFX Clutch Series is the competition-proven clutch package for select import and domestic vehicles. Designed for high-end applications that continually demand increased reliability and holding capacity, DFX Clutches score big with strength and some of the best drivability from a race-inspired single disc clutch.
Features:
- Added Durability
- Light Pedal Effort
- Patented Centrifugal Weight System (Where Applicable)
- Patented Ball Bearing Pressure Plate
- High Holding Capacity
Show More
- Heavy-Duty Design
- Dampened Paddle Style Disc
- SFI Approved
Note: Due to materials used, DFX Clutches are more aggressive with less dampening, which can cause some drivetrain noise/chatter.
Part TypeClutch Kit
Product LineCenterforce DFX Clutch Kits
BrandCENTERFORCE
Package Height3.9
Package Width13.7
Package Length13.8
Weight22.95 PG
Part CategoryPerformance Parts
Disc StyleSprung Hub
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistYes
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)264
Input Spline Quantity26 in (660.4 mm)
Disc Diameter10.4 in (264.16 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialCeramic
Alignment Tool IncludedNo
Vendor Part Number01161830
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
