Made in USA

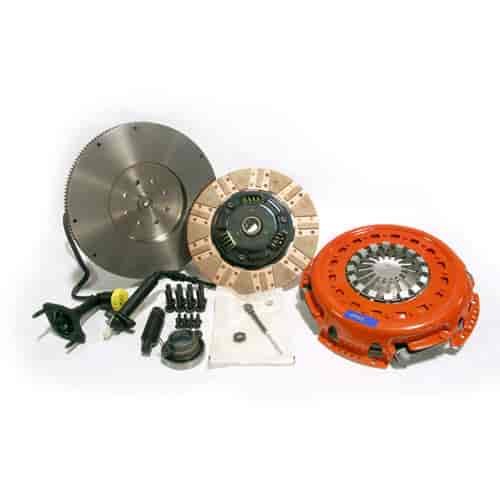

DFX Clutch Kit Includes Pressure Plate, Disc, Throwout and Pilot Bearings, Flywheel, Alignment Tool and Bolts
Product Discontinued
CENTERFORCEPART NUMBER: 183-01352341

DFX Clutch Kit Includes Pressure Plate, Disc, Throwout and Pilot Bearings, Flywheel, Alignment Tool and Bolts

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler/Dodge/Plymouth
DFX Clutch Kit
  • Includes Pressure Plate, Disc, Throwout and Pilot Bearings, Flywheel, Alignment Tool and Bolts
  • Pressure Plate: 13" Diameter
  • Disc: 1 3/8"-10 Spline

    CENTERFORCE/MIDWAY INDUSTRIES 01352341 Features:

    The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
    • The Centerforce DFX Clutch Series is the competition-proven clutch package for select import and domestic vehicles. Designed for high-end applications that continually demand increased reliability and holding capacity, DFX Clutches score big with strength and some of the best drivability from a race-inspired single disc clutch.

      Features:

      • Added Durability
      • Light Pedal Effort
      • Patented Centrifugal Weight System (Where Applicable)
      • Patented Ball Bearing Pressure Plate
      • High Holding Capacity
      Show More
      • Heavy-Duty Design
      • Dampened Paddle Style Disc
      • SFI Approved

        Note: Due to materials used, DFX Clutches are more aggressive with less dampening, which can cause some drivetrain noise/chatter.

        Centerforce Selection Guide

      Part TypeClutch Pressure Plate and Disc Set
      Product LineCenterforce DFX Clutch Kits
      BrandCENTERFORCE
      Package Height15.0
      Package Width18.25
      Package Length19.0
      Weight121.8 PG
      Part CategoryPerformance Parts
      Disc StyleSprung Hub
      Pressure Plate Static Pressure (Lbs.)3,800
      Pressure Plate StyleDiaphragm
      Throwout Bearing StyleStandard
      Throwout Bearing IncludedYes
      QuantitySold as a kit
      Mounting Hardware IncludedYes
      Counterweight AssistYes
      Flywheel IncludedYes
      Pilot Bushing IncludedYes
      Flywheel MaterialCast iron
      Disc Diameter (Mm)330
      Input Spline Quantity10 in (254 mm)
      Disc Diameter13 in (330.2 mm)
      Pilot Bushing MaterialSteel roller bearing
      Input Shaft Diameter1.375 in (34.925 mm)
      Disc MaterialCerametallic
      Alignment Tool IncludedYes
      Vendor Part Number01352341
      Package Qty1
      Package TypeEA
      No Questions
      No Reviews
