Mazda

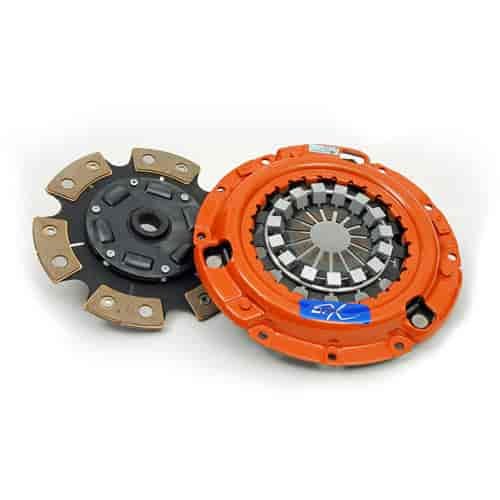

DFX Clutch KitIncludes Pressure Plate And Disc Pressure Plate: 8 7/8" Diameter Disc:15/16"-22 Spline
CENTERFORCE/MIDWAY INDUSTRIES 01580019 Features:
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.Part TypeClutch Kit
BrandCENTERFORCE
Package Height4.0
Package Width14.0
Package Length14.0
Weight14.85 PG
Part CategoryPerformance Parts
Disc Style6-paddle, sprung hub
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistYes
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)225
Input Spline Quantity22 in (558.8 mm)
Disc Diameter8.875 in (225.425 mm)
Input Shaft Diameter0.937 in (23.8 mm)
Disc MaterialCeramic
Alignment Tool IncludedNo
Vendor Part Number01580019
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
