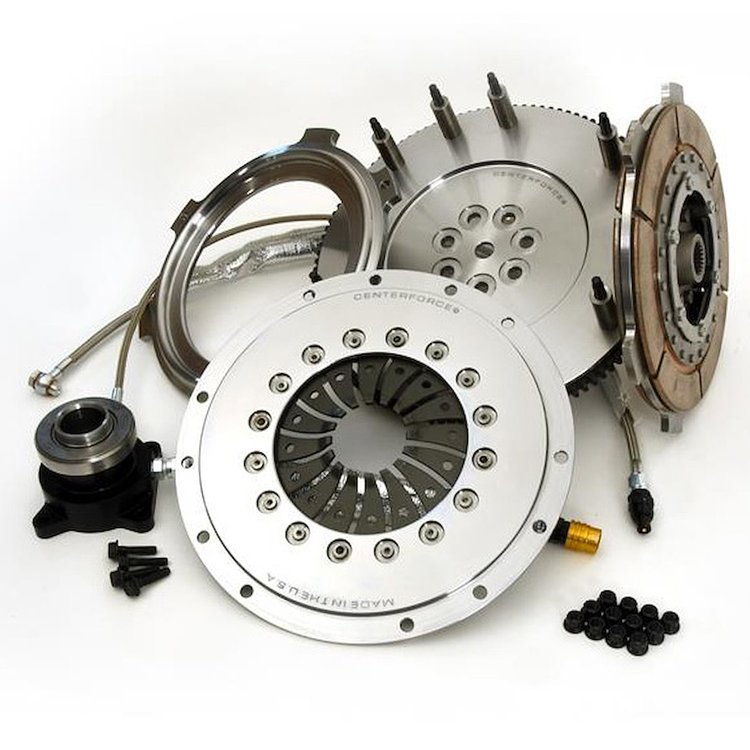

DYAD XDS Twin Disc Clutch Kit

Name: DYAD XDS Twin Disc Clutch Kit
Brand: CENTERFORCE
SKU: 183-818231520
Price: 2047.95 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Mitsubishi

2003-2004 Mitsubishi Lancer Evo
4G63T
8.75 in. Diameter
1 in. x 23 Spline
400-800 ft.-lbs Capacity
Includes Billet Steel Flywheel & Slave Cylinder (Push Conversion)

96-02 Mitsubishi Lancer Evolution 2.0L Turbocharged 4G63T DOHC - Push Conversion, Steel Flywheel, Includes Slave
No complicated setup or adjustments required; Fully dampened clutch system (where applicable) developed for vehicles with extreme power levels; Patented multi-disc, floating disc and drive disc design; Race proven paddle style discs; Positive drive floater; Holds 400 to 800 ft/lbs of torque; Precision balanced; ARP fasteners; Specification card included! ;

The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Extreme Torque Holding Capacity

Centerforce DYAD eXtreme Drive System (XDS) multi-disc clutch design has been developed to meet the needs of modern extreme street vehicles. New technology is pushing engine torque levels up to 1600 ft/lbs and being driven on both the street and the track. Drivers need a clutch that can offer drivability, quiet operation, light pedal force, and eXtreme holding capacity; Centerforce has you covered with their DYAD XDS clutches.

Features:
