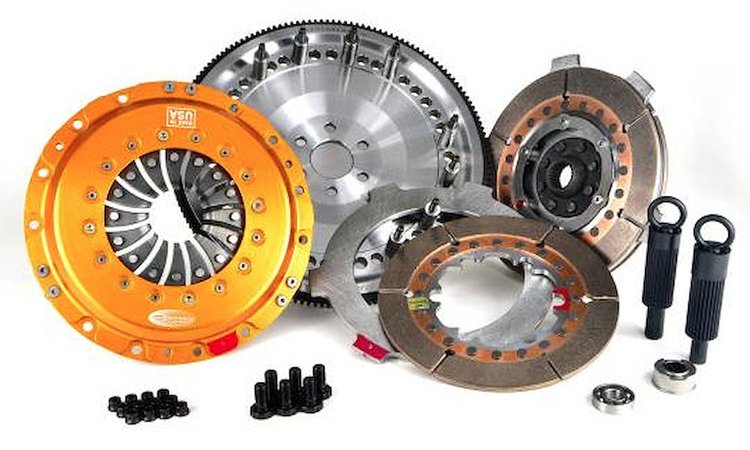

This Centerforce 838264000 TRIAD XDS Extreme Triple-Disc Clutch & Flywheel Kit has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball-bearing actuated pressure plate provides light pedal effort. The solid hub disc pack is equipped with Kevlar full-facing friction material providing increased holding capacity. The clutches are equipped with a lightened billet steel flywheel, providing low inertia and quicker RPMs. It is match-balanced and ready for installation using the included ARP fasteners.

Centerforce 838264000 TRIAD XDS Extreme Multi-Disc Clutch & Flywheel Kit Includes:

• Cover
• Discs
• Floaters
• Flywheel
• Hardware
• Throw out Bearing
• Pilot
• Tool

Centerforce 838264000 TRIAD XDS Extreme Multi-Disc Clutch & Flywheel Kit Includes:

• Material: Cast Iron Pressure Plate/Full Face Metalic Friction
• Input Shaft Diameter: 1 1/8 in.
• Input Spline Quantity: 26
• Clutch Disc Diameter: 8.75 in.
• Clutch Disc Diameter: 222.3 mm
• Disc Type Sprung Solid: Solid
• Counterweight Assist: No
• Torque Capacity: 1100 ft. lb.
• Release Bearing Included: Yes
• Pilot Bushing Included: Yes
• Flywheel Crank Bolt Size: 7/16 in. x 20 x 0.875 in.
• Flywheel Counter Balance Weight : 0 oz.
• Alignment Tool Included: Yes
• Tooth Quantity: 157
• Ring Gear OD: 13.294 in.
• Crankshaft Bolt Hole Quantity: 6

Centerforce 838264000 TRIAD XDS Extreme Multi-Disc Clutch & Flywheel Kit Note:

• Due to the aggressive nature of this race-inspired clutch, vehicles may experience some floater noise and/or chatter during operation
