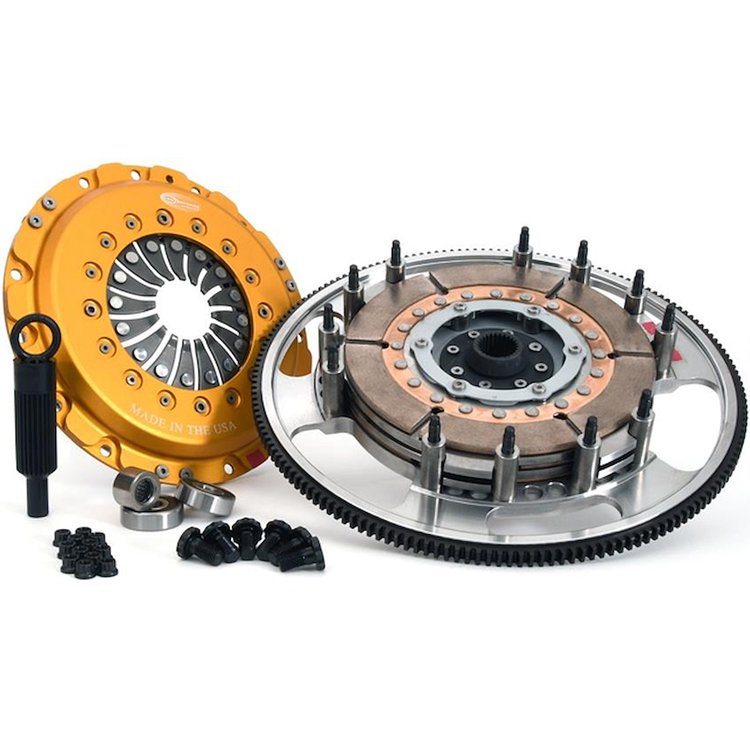

Triad XDS Triple Disk Clutch Kit for 1997-2015 GM LS
Product Discontinued
CENTERFORCEPART NUMBER: 183-838264042

Triad XDS Triple Disk Clutch Kit for 1997-2015 GM LS

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM
Triad XDS Triple Disk Clutch Kit
  • 1997-2015 GM LS
  • 1-1/8 in. x 26 Spline
  • 168-tooth Flywheel
  • 8.750 in. Diameter
  • 1,100 ft.-lbs. Torque Capacity

    Applications

    • 1998-2002 Chevy Camaro LS1
    • 1997-2013 Chevy Corvette LS1, LS2, LS6, LS3
    • 1998-2002 Pontiac Firebird LS1
    • 2004-2006 Pontiac GTO LS1, LS2



    98-02 Chevrolet Camaro Z28 5.7L ( 350 ci ) LS1 6-Spd

  • No complicated setup or adjustments required; 8.75" Diameter designed to lower inertia for track heavy use; Solid hub design for light weight and quick shifts.; Patented multi-disc, floating disc and drive disc design; Holds 500 to 1200 ft/lbs of torque; Ball bearing actuated pressure plate; Specification card included! ; Positive drive floater; Precision balanced; ARP fasteners;
  • The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

    Part TypeClutch Kit
    BrandCENTERFORCE
    Package Height5.5
    Package Width18.0
    Package Length18.0
    Weight38.45 PG
    Part CategoryPerformance Parts
    Pilot Bushing IncludedYes
    Disc StyleSolid Hub
    Flywheel MaterialBillet steel
    Ring Gear168 tooth
    Input Spline Quantity26 in (660.4 mm)
    Disc Diameter8.750 in. (222.3 mm)
    Counterweight AssistNo
    Clutch UsageStreet/Track
    Part FitmentSemi Universal
    Alignment Tool IncludedYes
    Flywheel IncludedYes
    Vendor Part Number838264042
    Package Qty1
    Package TypeEA
