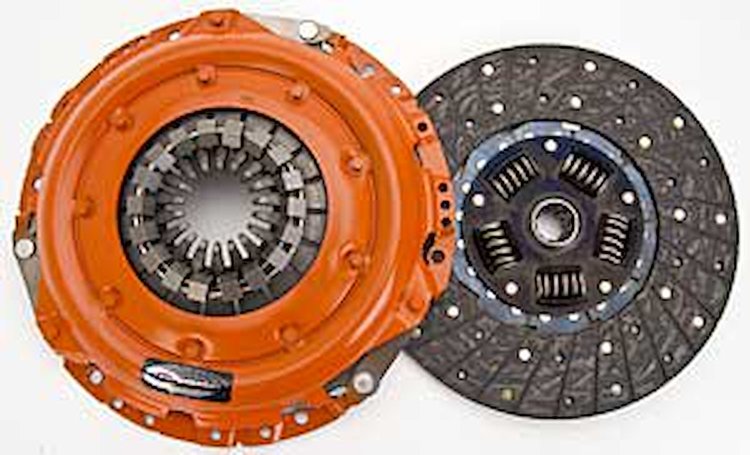

Dual Friction Clutch Includes Pressure Plate & Disc
InfoVehicle Info Needed
CENTERFORCEPART NUMBER: 183-DF024909

Dual Friction Clutch Includes Pressure Plate & Disc

$62995
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

GM
    Dual Friction Clutch
  • Includes Pressure Plate & Disc
  • Pressure Plate: 12"
  • Disc: 1 1/8"-10 Spline

    Fits: 62-95: CHEVROLET & GMC - CRATE ENGINES, SUVS, & TRUCKS

    69-73 Chevrolet Blazer 5.0L ( 307 ci ) - Optional 12

  • Centrifugal weight design (where applicable); Dual Friction(R) design ; Ball bearing pressure plate (where applicable); Light pedal effort; High quality friction material; Increased holding capacity; Smooth engagement
  • The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Part TypeClutch Kit
BrandCENTERFORCE
Package Height3.8
Package Width14.1
Package Length14.3
Weight31.12 PG
Part CategoryPerformance Parts
Disc StyleSprung Hub
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistYes
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)305
Input Spline Quantity10 in (254 mm)
Disc Diameter12 in (304.8 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialOrganic/Carbon composite
Part FitmentSemi Universal
Alignment Tool IncludedNo
Vendor Part NumberDF024909
Package Qty1
Package TypeEA
