![Dual Friction Clutch Pressure Plate/Disc Set for 1977-1996 Ford Trucks and Vans [565 ft-lbs]](https://www.jegs.com/images/mini_750/100/183/183-df735049.jpg)
Vehicle Info NeededCENTERFORCEPART NUMBER: 183-DF735049

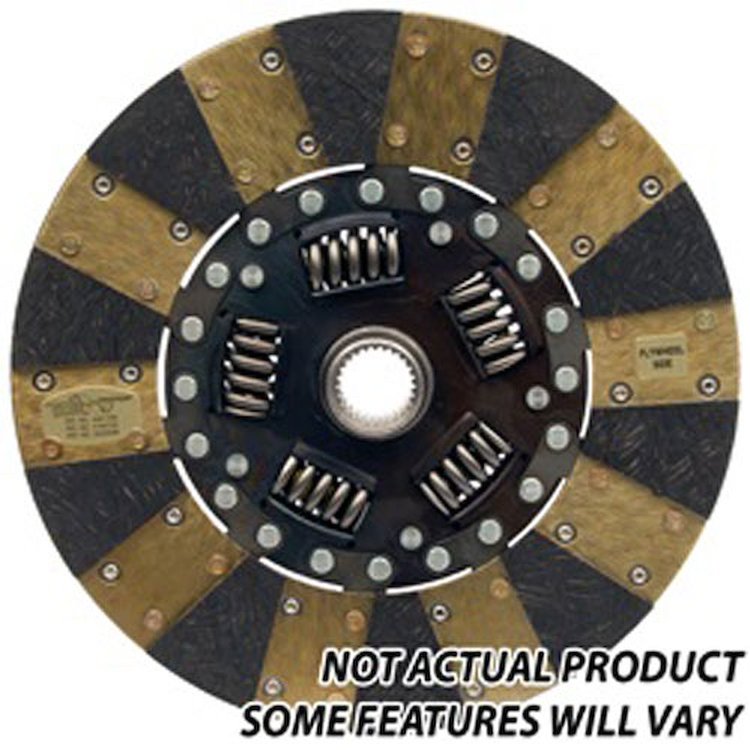

Dual Friction Clutch Pressure Plate/Disc Set for 1977-1996 Ford Trucks and Vans [565 ft-lbs]
$35695
Ships on 09/14/2026
Lowest Price GuaranteeSpecial
Dual Friction Clutch Pressure Plate/Disc SetFits 1977-1996 Ford Trucks and Vans 565 ft-lbs Torque Capacity 11 in. Dia., 10-Spline Cast Iron Pressure Plate, Organic/Carbon Composite Disc Sold as a Set
The Centerforce Dual Friction system pairs a centrifugal-assisted cast iron pressure plate with a full-face/segmented organic-carbon composite disc, holding extra clamping load at higher RPM without adding pedal effort at idle, for Ford Bronco, F-100/150/250/350 and Econoline applications from 1977-1996.
Centerforce DF735049 Features:
- Fits 1977-1996 Ford trucks and vans
- 565 ft-lbs torque capacity
- 11 in. disc diameter, 10-spline hub
- Cast iron pressure plate with full-face/segmented organic-carbon composite friction disc
- Centrifugal weight assist for RPM-responsive clamping
- Sprung disc design, 8-bolt pressure plate pattern
- 1-1/8 in. input shaft diameter
- Sold as a pressure plate and disc set
Part TypeClutch Pressure Plate and Disc Set
BrandCENTERFORCE
Package Height3.4
Package Width13.7
Package Length13.8
Weight24.2 PG
Part CategoryPerformance Parts
Clutch Disc Diameter11 in.
Spline Size1.125 - 10
Input Spline Quantity10
Disc Type Sprung SolidSprung
Diameter11 in (279.4 mm)
Disc TypeFull face/Segmented face
Clutch Bolt Pattern8
Torque Capacity565 ft-lbs
Counterweight AssistYes
MaterialCast Iron Pressure Plate / Full Face and Segmented Organic Friction
Input Shaft Diameter1-1/8 in.
Disc MaterialOrganic/Carbon Composite
Part FitmentDirect Fit
Vendor Part NumberDF735049
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
