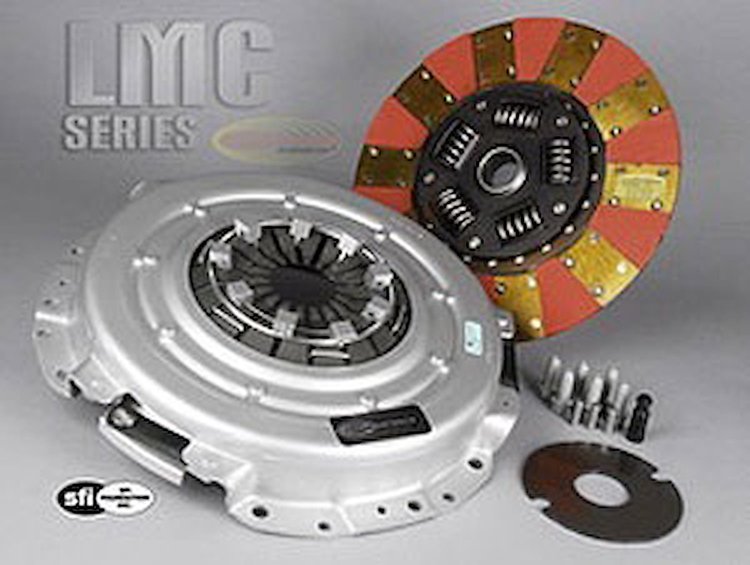

LMC Series Clutch Kit Includes Pressure Plate, Disc, Dowel Pins, Shim and Bleed Kit
Product Discontinued
CENTERFORCEPART NUMBER: 183-LM148679

LMC Series Clutch Kit Includes Pressure Plate, Disc, Dowel Pins, Shim and Bleed Kit

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford/Mercury
    LMC Series Clutch Kit
  • Includes Pressure Plate, Disc, Dowel Pins, Shim and Bleed Kit
  • Pressure Plate: 11"
  • Disc: 1 1/8"-26 Spline

    Fits: 05-10: FORD - MUSTANG, MUSTANG II, & MUSTANG COBRA

    05-10 Ford Mustang GT 4.6L ( 281 ci ) - Optional 1-1/8

  • Lightweight aircraft grade aluminum; Replaceable friction surface; Centrifugal weight design (where applicable); Ball bearing pressure plate; High quality friction material; Light pedal effort; Increased holding capacity; Smooth engagement; SFI approved
  • The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!

Part TypeClutch Kit
BrandCENTERFORCE
Package Height4.0
Package Width14.0
Package Length24.25
Weight14.0 PG
Part CategoryPerformance Parts
Disc StyleSprung Hub
Pressure Plate StyleDiaphragm
Throwout Bearing IncludedNo
QuantitySold as a kit
Mounting Hardware IncludedNo
Counterweight AssistYes
Flywheel IncludedNo
Pilot Bushing IncludedNo
Disc Diameter (Mm)279
Input Spline Quantity26 in (660.4 mm)
Disc Diameter11 in (279.4 mm)
Input Shaft Diameter1.125 in (28.575 mm)
Disc MaterialCarbon composite
Part FitmentSemi Universal
Alignment Tool IncludedNo
Vendor Part NumberLM148679
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
