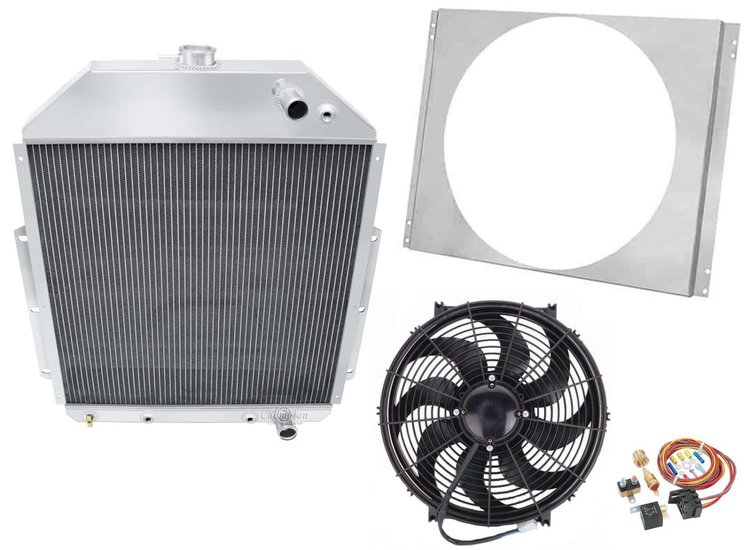

GM LS Conversion/Dual-Pass Radiator Kit for 1942-1947 Ford 1/2, 3/4, 1-Ton Pickup Truck, 1948-1952 Ford F1, F2, F3 Pickup Truck
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-4252-LSK

GM LS Conversion/Dual-Pass Radiator Kit for 1942-1947 Ford 1/2, 3/4, 1-Ton Pickup Truck, 1948-1952 Ford F1, F2, F3 Pickup Truck

$59846
ShippingShips on 09/23/2026
Lowest PriceLowest Price Guarantee

Ford Truck
GM LS Conversion/Dual-Pass Radiator Kit
  • 1942-1947 Ford 1/2, 3/4, 1-Ton Pickup Truck
  • 1948-1952 Ford F1, F2, F3 Pickup Truck
  • Includes:
    • Champion Core 3-Row Radiator
    • Fan Shroud
    • 16 in. Electric Fan
    • Fan Wiring Harness and Relay

      Champion Cooling 4252-LSK Kit Includes:

      • (1) Champion Cooling GM LS Conversion/Dual-Pass Radiator - CC4252-LS
      • (1) Champion Cooling Aluminum Single Fan Shroud - FS4252
      • (1) JEGS 16 in. Universal HD Electric Reversible Cooling Fan - 52110
      • (1) JEGS Single Electric Fan Wiring Harness and Relay Kit - 10560
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Overall Thickness2.625 in.
    Overall Height27.63 in (701.8 mm)
    Wiring IncludedYes
    Radiator Cap IncludedYes
    Shroud MaterialAluminum
    Outlet Quantity1
    Inlet LocationUpper passenger side
    Inlet Size (In.)1.25
    Core Width20.75 in (527.05 mm)
    Cooler Fitting Size1/2 in.-20 Straight Thread, Inverted Flare
    Row Quantity3
    Overall Width24.75 in (628.7 mm)
    Tube Size0.375 in (9.5 mm)
    Radiator FinishPolished
    Inlet Quantity1
    Transmission CoolerYes
    Maximum Fan Cfm2,200 cfm
    Shroud ColorNatural
    Bracket MaterialAluminum
    Radiator StyleDownflow
    Outlet Size1.5 in (38.1 mm)
    Fan Quantity1
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold as a kit
    Mounting TypeBracket
    Inlet AttachmentHose
    Core Height21.5 in (546.1 mm)
    Core Thickness2.25 in (57.15 mm)
    Fan Diameter16 in (406.4 mm)
    Blade ColorBlack
    Mounting Brackets IncludedYes
    Outlet LocationLower passenger side
    Outlet AttachmentHose
    Fan IncludedYes
    Part FitmentDirect Fit
    Bracket FinishPolished
    Package Qty1
    Package TypeEA
