All-Aluminum Radiator 1983-1994 F-Series Truck
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC1165

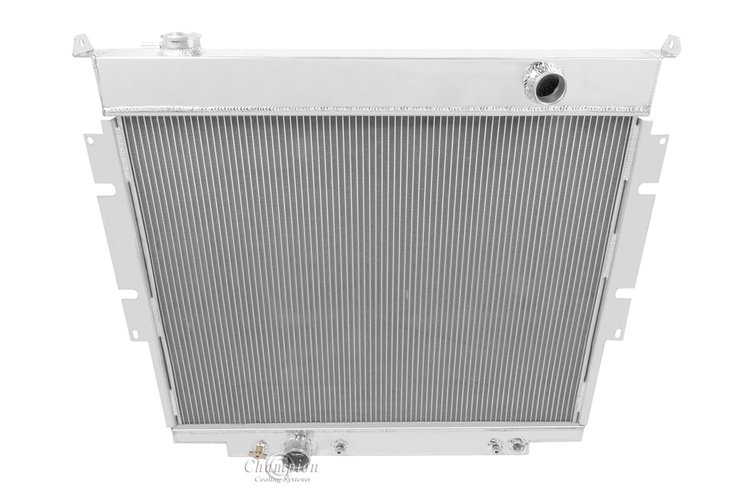

All-Aluminum Radiator 1983-1994 F-Series Truck

$31498
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

CCFK12 Swept-Blade 12 in. Electric Cooling Fan

CHAMPION COOLING SYSTEMS

CCFK12 Swept-Blade 12 in. Electric Cooling Fan

Part Number : 166-CCFK12
$5999
CCFKRL Universal Electric Cooling Fan Relay Kit

CHAMPION COOLING SYSTEMS

CCFKRL Universal Electric Cooling Fan Relay Kit

Part Number : 166-CCFKRL
$6999
Aluminum Fan Shroud

CHAMPION COOLING SYSTEMS

Aluminum Fan Shroud

Part Number : 166-FS1165
$14399
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999

Ford
    All-Aluminum Radiator
  • 1983-1994 Ford F-Series Truck with Diesel Engine
  • Champion Core 3-Row

    Radiator Specifications:
    Core Dimensions: 23-3/4" (H) x 31-1/8" (W)
    Overall Dimensions:30-7/8" (H) x 33-3/4" (W)
    Hose Locations: In: Passenger
    Out: Driver
    Hose Fittings: In:1-3/4"
    Out: 2"
    Transcooler: 1/827 NPT
    Mount Type: Bracket

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height7.0
Package Width34.0
Package Length36.5
Weight31.51 PG
Overall Height30.875 in.
Inlet LocationPassenger
UpperPASS
Core Width31.125 in.
Core MaterialAluminum
Overall Width33.75 in.
Inlet Diameter1.75 in.
Down Flow Or Cross Flow TypeDown Flow
RadiatorDOWN FLOW
Tank MaterialAluminum
Core Row Quantity3 Row
Transmission Oil Cooler Fitting Type1/8-27 NPT
In1.75
Outlet Diameter2 in.
3 Row Tank Size3
Trans Cooler1/8-27NPT
Internal Transmission Oil CoolerYes
3 Row Core Thickness2
Mounting TypeBracket
Out2
Core Height23.75 in.
MountingBracket
Core Thickness2.25 in.
Mounting SizeVer - 7 1/4 Horizontal - 32 1/8
Outlet LocationDriver
LowerDRIVER
Part FitmentDirect Fit
Vendor Part NumberCC1165
Package Qty1
Package TypeEA
