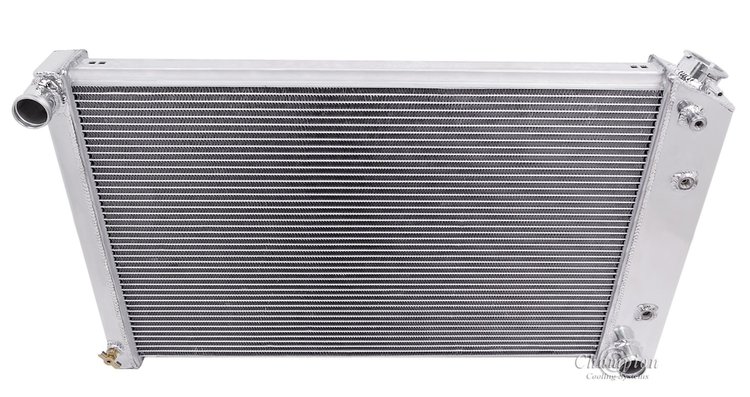

All-Aluminum Radiator
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC162

All-Aluminum Radiator

$28498
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Flap Fan Shroud for 162 Series Radiator

CHAMPION COOLING SYSTEMS

Flap Fan Shroud for 162 Series Radiator

Part Number : 166-FS162-16F
$16599
FS162-2X13 Aluminum Fan Shroud for 1965-1988 Chevy/GMC Cars, Trucks, SUVs

CHAMPION COOLING SYSTEMS

FS162-2X13 Aluminum Fan Shroud for 1965-1988 Chevy/GMC Cars, Trucks, SUVs

Part Number : 166-FS162-2X13
$14799
Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49

GM
    All-Aluminum Radiator
  • 1970-1986 GM Vehicles with Automatic Transmission
  • Champion Core 3-Row

    This Champion radiator will be sure to provide the best cooling.

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height7.0
Package Width22.0
Package Length36.0
Weight18.5 PG
Overall Height18.25 in.
Outlet Size1.5 in (38.1 mm)
Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
Outlet Diameter1.5 in.
QuantitySold individually
Inlet LocationDriver
Internal Transmission Oil CoolerYes
Mounting TypeSaddle
Inlet Size (In.)1.5
Core Height17 in.
Core Thickness2.25 in.
Core Width26.25 in.
Outlet LocationPassenger
Core MaterialAluminum
Overall Width31.625 in.
Inlet Diameter1.5 in.
Down Flow Or Cross Flow TypeCross Flow
Part FitmentDirect Fit
Tank MaterialAluminum
Core Row Quantity3 Row
Vendor Part NumberCC162
Package Qty1
Package TypeEA
