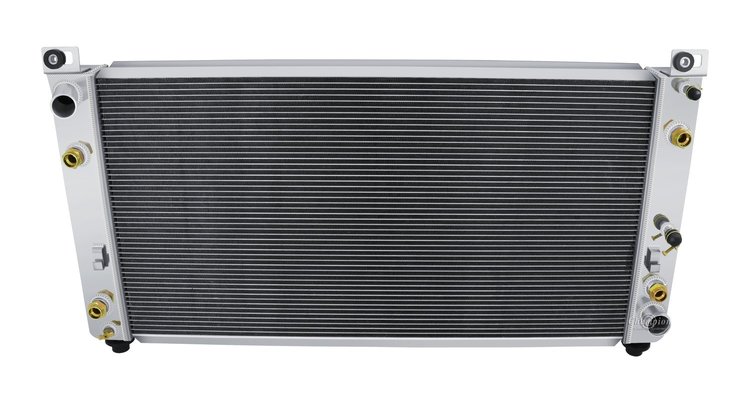

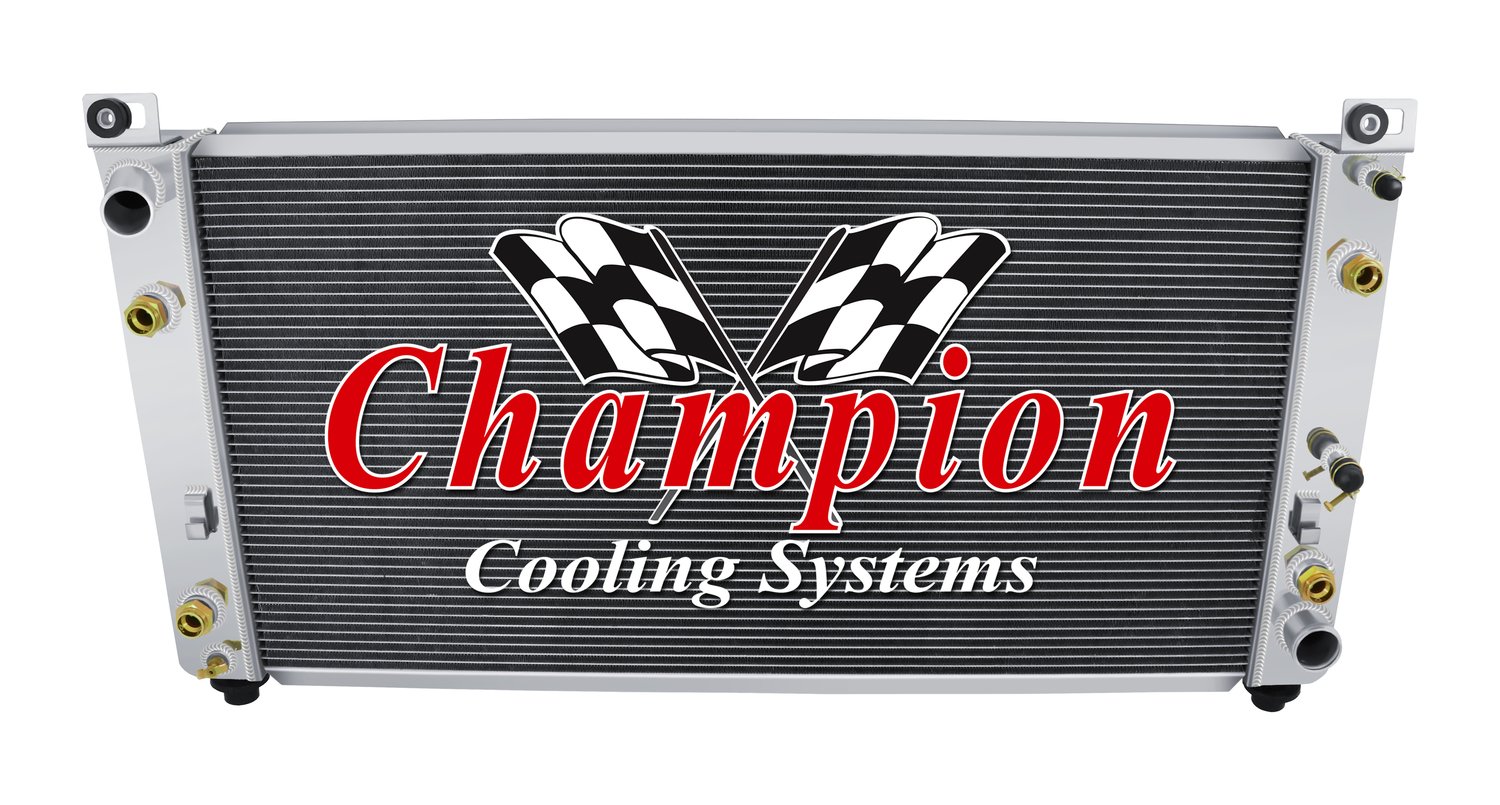

CC2537 Aluminum Radiator for 2001-2002 GM 2500, 3500 Trucks, Suburban w/8.1L V8 Gas Engine
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC2537

CC2537 Aluminum Radiator for 2001-2002 GM 2500, 3500 Trucks, Suburban w/8.1L V8 Gas Engine

$33499
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Swept-Blade 16" Electric Cooling Fan Kit

CHAMPION COOLING SYSTEMS

Swept-Blade 16" Electric Cooling Fan Kit

Part Number : 166-CCFK16K1
$13773
FS2537-2X16 Aluminum Fan Shroud for CC2537 Aluminum Radiator

CHAMPION COOLING SYSTEMS

FS2537-2X16 Aluminum Fan Shroud for CC2537 Aluminum Radiator

Part Number : 166-FS2537-2X16
$14799
Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

JEGS

Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

Part Number : 555-16055
$399$4.99
You Save$1.00
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30

GM
Aluminum Radiator
  • 2001-2002 Chevy, GMC 2500, 3500 Trucks
  • 2001-2002 Chevy, GMC Suburban
  • 8.1L (496 ci.) V8 Gasoline Engine
  • 3-Row
  • Cross Flow
  • Core: 19 1/4 in. H x 37 3/4 in. W
  • Overall: 23 3/8 in. H x 44 in. W
  • Transmission Cooler

    Champion Cooling CC2537 Aluminum Radiator:

    • Radiator Flow: Cross Flow
    • Core Dimensions. (H x W): 19 1/4 in. x 37 3/4 in.
    • Overall Dimensions (H x W): 23 3/8 in. x 44 in.
    • Hose Locations: In: Driver Top - Out: Passenger/Bottom
    • Hose Fittings: In: 1 5/8 in. - Out: 1 3/4 in.
    • Trans Cooler: 7/8 in. 147
    • OEM Mount
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height8.25
    Package Width26.15
    Package Length46.0
    Weight30.62 PG
    Part CategoryReplacement Parts
    Overall Height23.375 in.
    Outlet Size1 3/4 in.
    Inlet Size1 5/8 in.
    Drain Valve IncludedYes
    Outlet Diameter1.75 in.
    Inlet LocationDriver
    Internal Transmission Oil CoolerYes
    Mounting TypeOEM
    Core Height19.25 in.
    Core Thickness2 in.
    Core Width37.75 in.
    Outlet LocationPassenger
    Core MaterialAluminum
    Overall Width44 in.
    Inlet Diameter1.625 in.
    Down Flow Or Cross Flow TypeCross Flow
    Part FitmentSemi Universal
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Vendor Part NumberCC2537
    Package Qty1
    Package TypeEA
