Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC281B-BLK

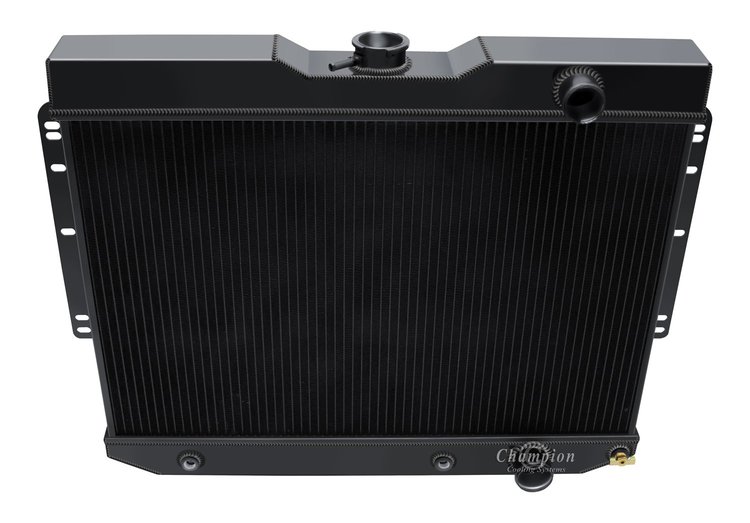

3-Row Aluminum Radiator 1960-1965 Chevy Impala/Bel-Air 3.9l L6/327ci V8/283ci V8, Semi-Gloss Black Finish
$26999
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
3-Row Aluminum Radiator1960-1965 Chevy Impala/Bel-Air 3.9l L6/327ci V8/283ci V8 Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
- Bracket Specs: Vertical - 10 3/8 (.375) in. x Horizontal - 26.750 in.
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width24.0
Package Length30.0
Weight21.14 PG
Overall Thickness2.75 in (69.9 mm)
Overall Height21.75 in (552.5 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
QuantitySold individually
Inlet LocationPassenger Side
Inlet Size (In.)1 1/2
Core Height16.5 in (419.1 mm)
Core Thickness2.5 in (63.5 mm)
Mounting Brackets IncludedYes
Core Width24.5 in (622.3 mm)
Row Quantity3
Outlet LocationPassenger
Overall Width28 in (711.2 mm)
Tube Size0.625 in (15.9 mm)
Radiator FinishSemi-gloss black
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Bracket MaterialAluminum
Radiator StyleDownflow
Vendor Part NumberCC281B-BLK
Package Qty1
Package TypeEA
