![CC2829B-CH All-Aluminum Radiator for 1928-1929 Ford Model A w/ Chevy Engine Conversion [3/4 in. Tubes]](https://www.jegs.com/images/mini_750/100/166/166-cc2829b-ch.jpg)
Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC2829B-CH

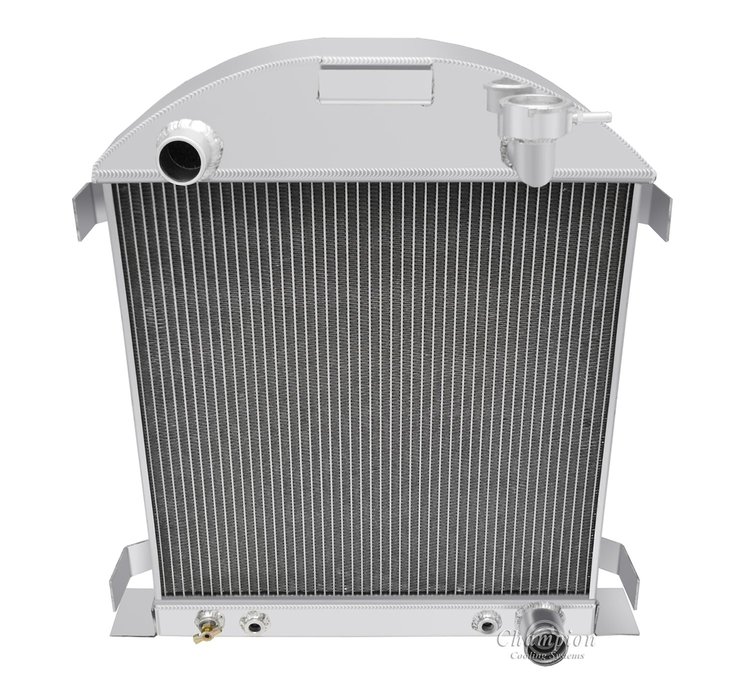

CC2829B-CH All-Aluminum Radiator for 1928-1929 Ford Model A w/ Chevy Engine Conversion [3/4 in. Tubes]
$28498
Ships on 11/02/2026
Lowest Price GuaranteeFord
All-Aluminum Radiator 1928-1929 Model A With Chevy V8 Conversion 3/4 in. Tubes Champion Core 3-Row
Champion Cooling Systems CC2829B-CH All-Aluminum Radiator Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- OEM mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height9.25
Package Width25.5
Package Length27.0
Weight18.5 PG
Part CategoryReplacement Parts
Overall Height24 in.
Radiator Cap IncludedYes
Inlet LocationDriver
Inlet Size (In.)1 1/2
Core Width18.5 in.
Row Quantity3
Core MaterialAluminum
Overall Width22.625 in.
Inlet Diameter1.5 in.
Down Flow Or Cross Flow TypeDown Flow
Radiator FinishNatural
Transmission Cooler1/2-20 straight, inverted flare
Tank MaterialAluminum
Core Row Quantity3 Row
Radiator StyleDownflow
Outlet Size1 3/4 in.
Radiator MaterialAluminum
Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
Outlet Diameter1.75 in.
QuantitySold individually
MaterialAluminum
Internal Transmission Oil CoolerYes
Mounting TypeOEM
Core Height18 in.
MountingOEM
Core Thickness2.5 in.
Outlet LocationPassenger
Part FitmentDirect Fit
Vendor Part NumberCC2829B-CH
Package Qty1
Package TypeEA
