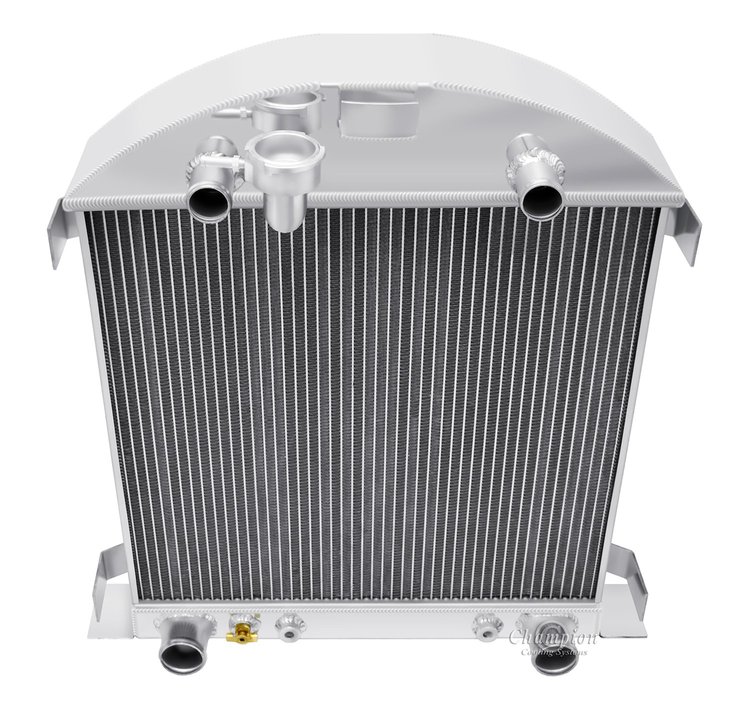

All-Aluminum Radiator
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC2829B-FH

All-Aluminum Radiator

$28498
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

Ford
All-Aluminum Radiator
  • 1928-1929 Ford Model A w/Flathead V8 Conversion
  • Champion Core 3-Row

    Notes

    • Core Thickness: 2.500 in.
    • Upper Tank Thickness: 4.250 in.
    • Lower Tank Thickness: 3.000 in.
    • Core Dimensions: 18.000 in. H x 18.375 in. W
    • Overall Dimensions: 24.000 in. H x 22.625 in. W
    • Hose Locations: Dual "IN", Dual "Out"
    • Hose Size: "IN" 1 1/4 in., "OUT" 1 3/4 in.
    • Cooler Fitting Size: 1/8 in. NPT





    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height9.25
    Package Width25.5
    Package Length27.0
    Weight18.5 PG
    Overall Height24 in.
    Radiator Cap IncludedYes
    Inlet LocationDual - Driver & Pass
    Inlet Size (In.)1.25
    Core Width18.375 in.
    Row Quantity3
    Core MaterialAluminum
    Overall Width22.625 in.
    Inlet Diameter1.25 in.
    Tube Size0.625 in (15.9 mm)
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishPolished
    Transmission CoolerYes
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting Type1/8-27 NPT
    Outlet Diameter1.75 in.
    QuantitySold individually
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    Core Height18 in.
    Core Thickness2.5 in.
    Outlet LocationDual - Driver & Pass
    Fan IncludedNo
    Part FitmentDirect Fit
    Vendor Part NumberCC2829B-FH
    Package Qty1
    Package TypeEA
