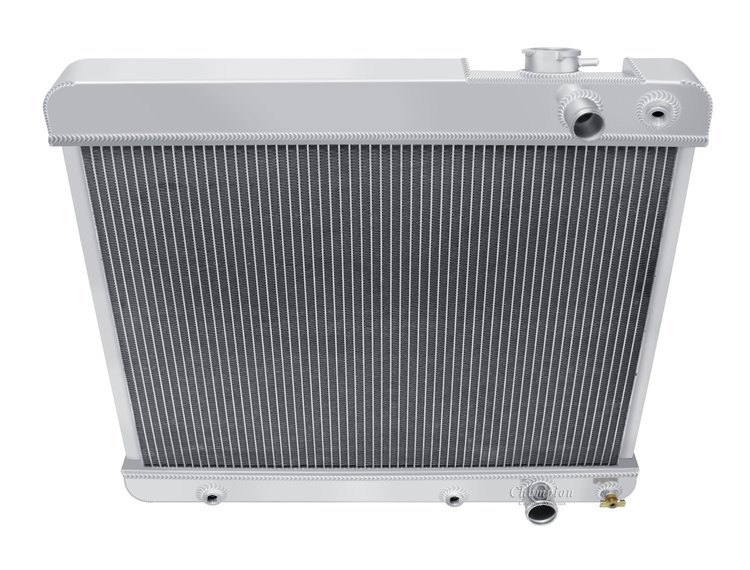

GM LS Conversion/Dual-Pass Radiator 1963-1966 GM C/K Pickup Truck, 1963-1966 GMC Suburban
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC284-LS

GM LS Conversion/Dual-Pass Radiator 1963-1966 GM C/K Pickup Truck, 1963-1966 GMC Suburban

$31498
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30
Racing Super Coolant Additive [16 oz.]

JEGS

Racing Super Coolant Additive [16 oz.]

Part Number : 555-72324
$1199$13.89
You Save$1.90
Racing Coolant and Antifreeze with LP-3 [1 Gallon]

JEGS

Racing Coolant and Antifreeze with LP-3 [1 Gallon]

Part Number : 555-72316
$2526$36.99
You Save$11.73

GM Truck
GM LS Conversion/Dual-Pass Radiator
  • 1963-1966 GM C/K Pickup Truck
  • 1963-1966 GMC Suburban
  • Champion Core 3-Row
  • Aluminum
  • Sold Individually

    Dimensions for Champion Cooling CC284-LS

    Features:

    • Includes (1) 13 lb. radiator cap
    • 100-percent TIG-welded construction
    • 2 mm thick aluminum tank, fittings, and brackets
    • Billet filler neck
    • OE-style brass petcock
    • Brazed core technology with 3/8 in. spaced cooling tubes
    • Max Cool Louvered Technology with 14-16 cooling fins per inch
    • Stay Cool with Champion Core LS-Swap Radiators

      Champion Cooling Systems Dual-Pass Radiators are a perfect choice for your LS-engine conversion vehicle. Available for most popular LS swap applications, these radiators are constructed entirely of aluminum for exceptional weight savings over stock equipment. The dual-pass flow offers superior cooling capabilities by flowing the coolant twice across the radiator. All radiators feature a 3-row core of 5/8 in. tubing to ensure proper flow when needed most. Champion Radiators are built with 100% welded seams, brazed core technology, and absolutely no epoxy. These radiators work great for both street or race cars and support approximately 600 to 800+ horsepower cooling capacity.

      Show More

      Upgrade your engine cooling system with the Champion Cooling Systems LS-Engine Conversion Aluminum Radiator — built for performance and reliability. Ideal for any modern swap, this high-quality radiator is purpose-designed for your LS engine application and ensures long-lasting thermal control without compromise.

      Crafted from full aluminum construction, it brings exceptional weight savings and superior heat-dissipation compared to traditional cast-iron or mixed-material units. With a true three-row core and dual-pass flow design, this radiator allows coolant to traverse the cooling medium twice for maximum efficiency under load. Whether you’re building a street cruiser or a high-powered track warrior, this unit supports 600 to 800+ horsepower setups with confidence.

      If you’re working on an ls swap radiator setup, this Champion solution ticks all the boxes: direct-fit for many LS-based conversions, high-capacity flow, and robust build quality. The all-aluminum assembly incorporates TIG-welded tanks, brazed core technology (0 % epoxy), and premium internals to resist warping, corrosion, or failure under elevated heat.

      We know how important it is to get your cooling right when performing an ls swap radiators upgrade. This radiator simplifies fitment, delivers industry-leading performance, and leaves nothing to chance. Choose the Champion Cooling Systems LS-Engine Conversion Aluminum Radiator and get the cooling support your build deserves — because when temperatures rise and demands increase, the right radiator makes all the difference.

    Part TypeRadiator
    Product LineChampion Cooling Systems LS-Engine Conversion Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height6.3
    Package Width26.0
    Package Length27.0
    Weight18.0 PG
    Overall Thickness2.5 in (63.5 mm)
    Overall Height23.375 in.
    Radiator Cap IncludedYes
    Outlet Quantity1
    Inlet LocationPassenger
    Inlet Size (In.)1.25
    Core Width22.75 in.
    Cooler Fitting Size1/2 in.-20 Straight Thread, Inverted Flare
    Row Quantity3
    Core MaterialAluminum
    Overall Width25 in.
    Inlet Diameter1.25 in.
    Tube Size0.625 in (15.9 mm)
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishPolished
    Inlet Quantity1
    Transmission CoolerYes
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Radiator StyleDownflow
    Outlet Size1.5 in (38.1 mm)
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Transmission Oil Cooler Fitting TypeG1/4
    Outlet Diameter1.5 in.
    QuantitySold individually
    Internal Transmission Oil CoolerYes
    Mounting TypeSaddle
    Inlet AttachmentHose
    Core Height17.375 in.
    Core Thickness2.25 in (57.15 mm)
    Mounting Brackets IncludedNo
    Outlet LocationPassenger
    Outlet AttachmentHose
    Fan IncludedNo
    Part FitmentDirect Fit
    Vendor Part NumberCC284-LS
    Package Qty1
    Package TypeEA
