Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC289B-LSK

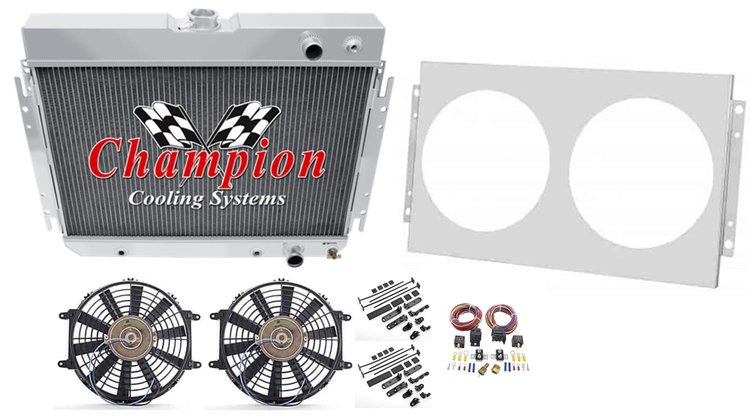

GM LS Conversion/Dual-Pass Radiator Kit, 1963-1968 Chevy Bel Air/Biscayne/Impala, 1964-1967 Chevy Chevelle/El Camino
$55335
Ships on Sep 14, 2026
Lowest Price GuaranteeGM
GM LS Conversion/Dual-Pass Radiator Kit1963-1968 Chevy Bel Air/Biscayne/Impala 1964-1967 Chevy Chevelle/El CaminoIncludes:
- Champion Core 3-Row Radiator
- Dual Fan Shroud
- 12 in. Electric Fans
- Dual Fan Wiring Harness & Relay
Kit Includes:
- (1) Champion Cooling GM LS Conversion/Dual-Pass Radiator - 166-CC289B-LS
- (1) Champion Cooling Aluminum Dual Fan Shroud - 166-FS289
- (2) JEGS 12 in. Universal Electric Fans - 555-52131
- (1) JEGS Dual Fan Wiring Harness and Relay Kit - 555-10570
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Overall Thickness2.75 in (69.9 mm)
Overall Height21.875 in (555.6 mm)
Wiring IncludedYes
Radiator Cap IncludedYes
Switch Actuation StyleThermal
Outlet QuantityOne
Inlet LocationUpper passenger side
Inlet Size (In.)1 1/4
Core Width24.75 in (628.65 mm)
Cooler Fitting Size1/2 in.-20 Straight Thread, Inverted Flare
Row Quantity3
Overall Width27.875 in.
Tube Size0.625 in (15.9 mm)
Radiator FinishPolished
Inlet QuantityOne
Transmission CoolerYes
Bracket MaterialAluminum
Radiator StyleDownflow
Maximum Fan Rpm1,200 rpm
Outlet Size1.5 in (38.1 mm)
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold as a kit
Mounting TypeBracket
Inlet AttachmentHose
Core Height16 in (406.4 mm)
Core Thickness2.5 in (63.5 mm)
Fan Diameter12 in (304.8 mm)
Mounting Brackets IncludedYes
Outlet LocationLower passenger side
Outlet AttachmentHose
Fan IncludedYes
Part FitmentDirect Fit
Bracket FinishPolished
Relay IncludedYes
Package Qty1
Package TypeEA
