Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC339B-BLK
3-Row Aluminum Radiator 1963-1977 Ford Mustang/Mavrick/Falcon/Torino/Fairlane, 1966-1973 Mercury Comet/Cougar, Semi-Gloss Black
$31498
1 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeFord

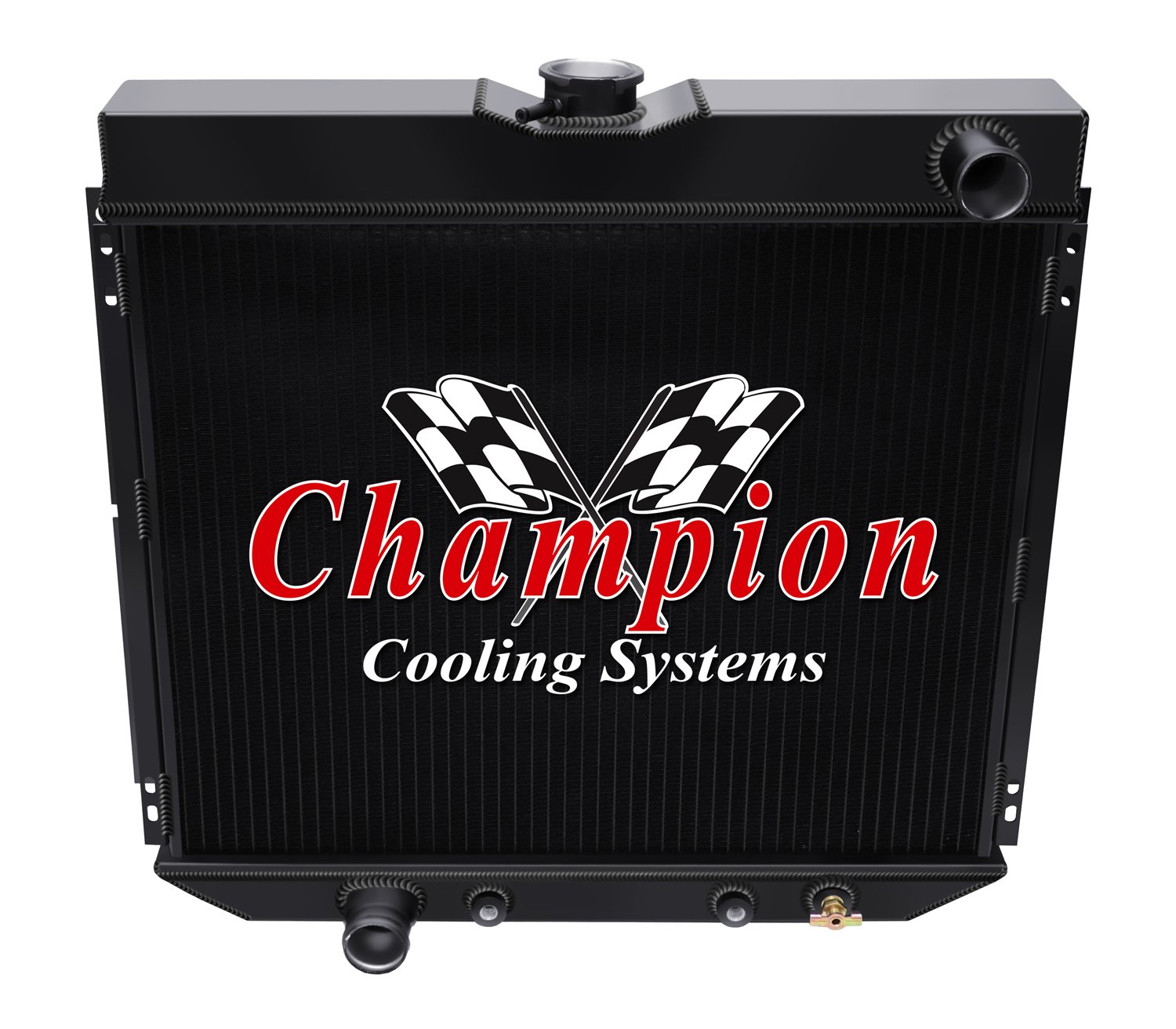

3-Row Aluminum Radiator1963-1977 Ford Mustang/Mavrick/Falcon/Torino/Fairlane 1966-1973 Mercury Comet/Cougar Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/8-27 NPT Transmission Cooler Connections
- Mounting Specs: Vertical - 12 1/2 (.500) in. x Horizontal - 21 in.
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Stay Cool and Look Cool with Champion Core Semi-Gloss Black Radiators!
Champion Cooling introduces their 3-Row Aluminum Radiators now with a long-lasting semi-gloss black finish. This new water-based coating is resistant to chipping, peeling, chemicals and is heat tolerant up to 300 degrees F. Expect the same sufficient cooling capacity for strip or strip vehicles, brazed-core technology with all-welded seams (without epoxy) and included standard radiator cap, now all with an eye-catching finish!
Part TypeRadiator
Product LineChampion Cooling Systems 3-Row Aluminum Semi-Gloss Black Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width24.0
Package Length25.0
Weight17.0 PG
Overall Height21.125 in.
Radiator Cap IncludedYes
Inlet LocationPassenger
Inlet Size (In.)1 1/2
Core Width20.25 in.
Row Quantity3
Core MaterialAluminum
Overall Width22.125 in.
Inlet Diameter1.5 in.
Tube Size0.625 in (15.9 mm)
Down Flow Or Cross Flow TypeDown Flow
Radiator FinishPolished
Transmission Cooler1/8-27 NPT
Tank MaterialAluminum
Core Row Quantity3 Row
Bracket MaterialAluminum
Radiator StyleDownflow
Radiator MaterialAluminum
Drain Valve IncludedYes
Transmission Oil Cooler Fitting Type1/8-27 NPT
Outlet Diameter1.5 in.
QuantitySold individually
Internal Transmission Oil CoolerYes
Mounting TypeBracket
Core Height16.375 in.
Core Thickness2.5 in.
Mounting Brackets IncludedYes
Outlet LocationDriver
Fan IncludedNo
Part FitmentDirect Fit
Bracket FinishPolished
Vendor Part NumberCC339B-BLK
Package Qty1
Package TypeEA
