Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC369-BLK

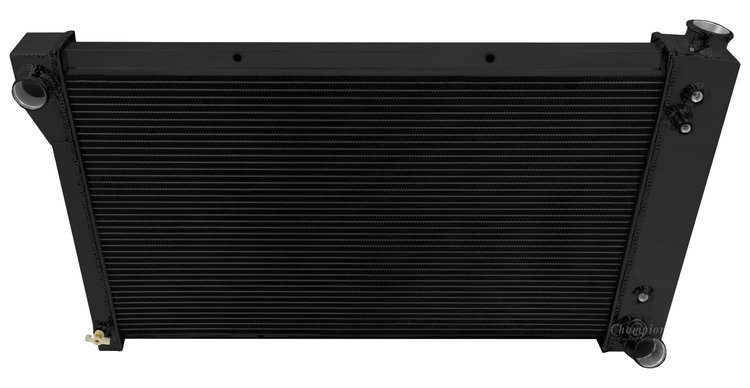

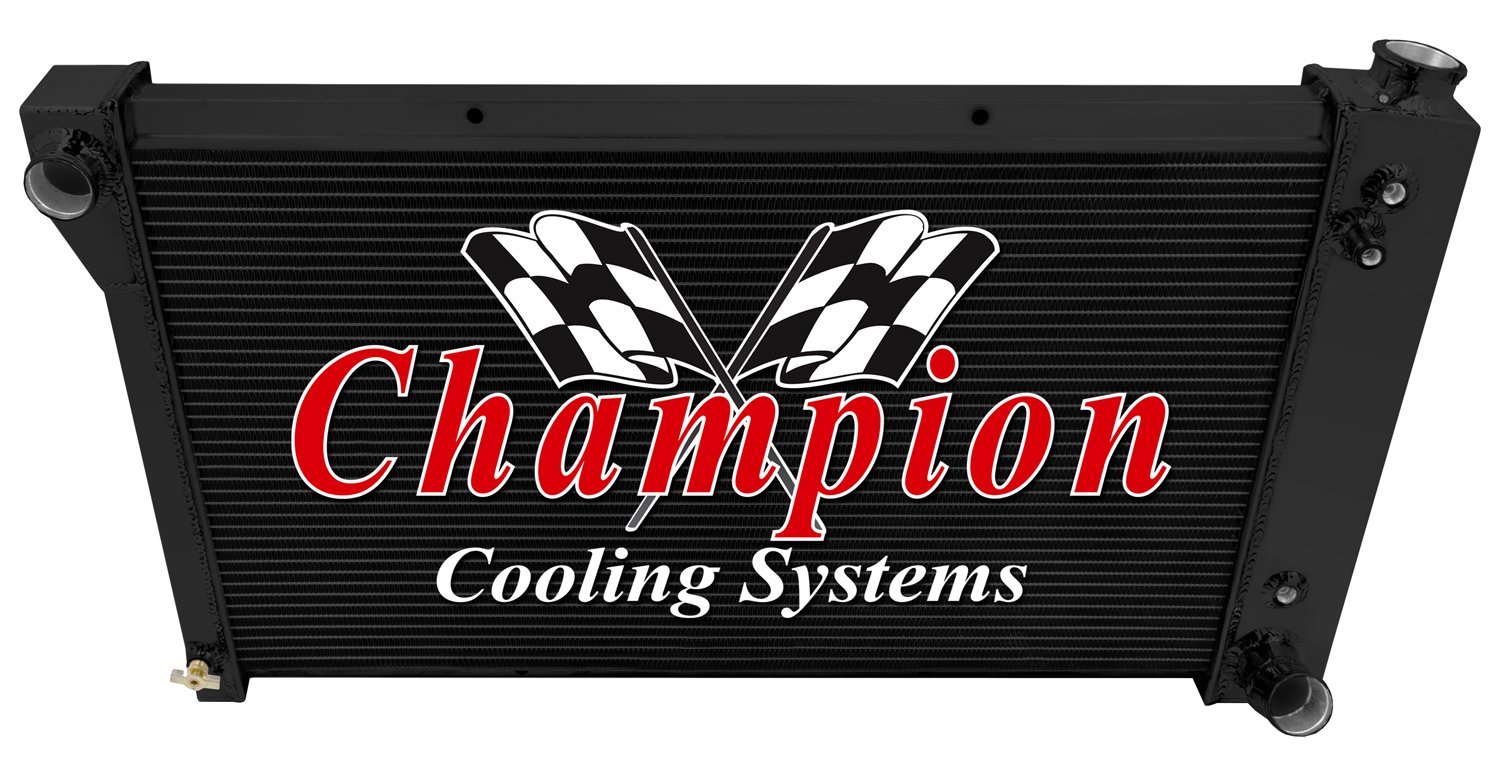

CC369-BLK All-Aluminum Radiator for Select 1967-1972 Chevrolet & GMC Trucks [Black]
$27799
3 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeChevy
All-Aluminum Radiator1967-1972 Chevrolet Truck (28 in. Core) Champion Core 3-Row Automatic Transmission Semi-Gloss Black Finish
Champion Cooling Systems CC369-BLK All-Aluminum Radiator Features:
- 100-percent TIG-welded construction
- 2 mm thick aluminum tank, fittings, and mounts
- Billet filler neck
- OE-style brass petcock
- Brazed core technology with 3/8 in. spaced cooling tubes
- 14-16 Max Cool louvered cooling fins per inch
- Long lasting semi-gloss black finish
- Resists chipping, peeling, & chemicals
- Tolerates heat up to 300 degrees F
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.25
Package Width22.25
Package Length36.25
Weight19.33 PG
Part CategoryPerformance Parts
Overall Height19.25 in.
Outlet Size1 3/4 in.
Radiator MaterialAluminum
Inlet LocationDriver Side
MaterialAluminum
Internal Transmission Oil CoolerYes
Mounting TypeSaddle
Inlet Size (In.)1 1/2
Core Height17 in.
Core Thickness2.25 in (57.15 mm)
Core Width28.25 in.
Row Quantity3
Outlet LocationPassenger
Core MaterialAluminum
Overall Width33.875 in.
Down Flow Or Cross Flow TypeCross Flow
Radiator FinishNatural
Transmission Cooler1/2-20 straight, inverted flare
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part NumberCC369-BLK
Package Qty1
Package TypeEA
