![CC370B-DP All-Aluminum Radiator for 1967-1969 Chevy Camaro & Pontiac Firebird [3/4 in. Tubes-Dual Pass]](https://www.jegs.com/images/mini_750/100/166/166-cc370b-dp.jpg)
Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC370B-DP

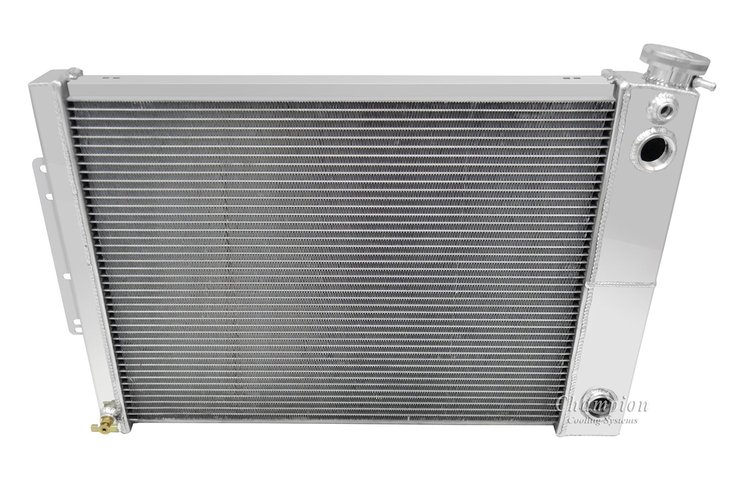

CC370B-DP All-Aluminum Radiator for 1967-1969 Chevy Camaro & Pontiac Firebird [3/4 in. Tubes-Dual Pass]
$33799
4 left in stock
Ships Tomorrow
Lowest Price Guarantee Chevy
All-Aluminum Radiator1967-1969 Chevy Camaro & Pontiac Firebird Big Block LS Swap Dual Pass Champion Core 3-Row 3/4 in. Tubes
Champion Cooling Systems CC370B-DP All-Aluminum Radiator Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Dual pass bungs for interchangable fittings
- Bracket mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width23.0
Package Length33.0
Weight19.1 PG
Part CategoryReplacement Parts
Overall Height19.25 in.
Outlet Size-16 AN O-ring
Inlet Size-16 AN O-ring
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet LocationUpper passenger side
MaterialAluminum
Internal Transmission Oil CoolerNo
Mounting TypeBracket
Core Height17 in.
MountingBracket
Core Thickness2.5 in (63.5 mm)
Core Width23 in.
Row Quantity3
Outlet LocationLower passenger side
Core MaterialAluminum
Overall Width30.25 in.
Radiator TypePerformance Replacement
Down Flow Or Cross Flow TypeCross Flow
Radiator FinishNatural
Transmission CoolerNo
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part NumberCC370B-DP
Package Qty1
Package TypeEA
