Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC38CH

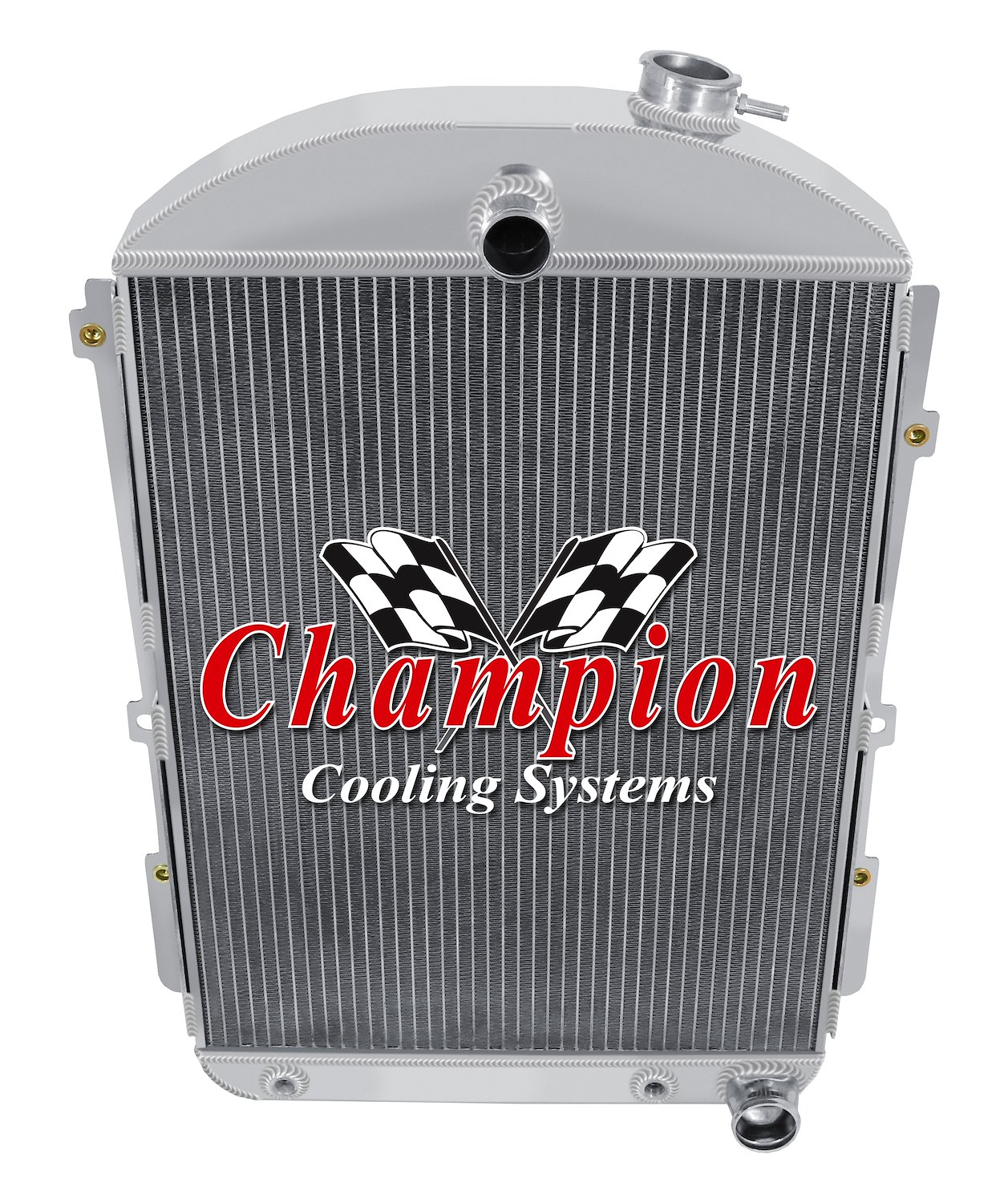

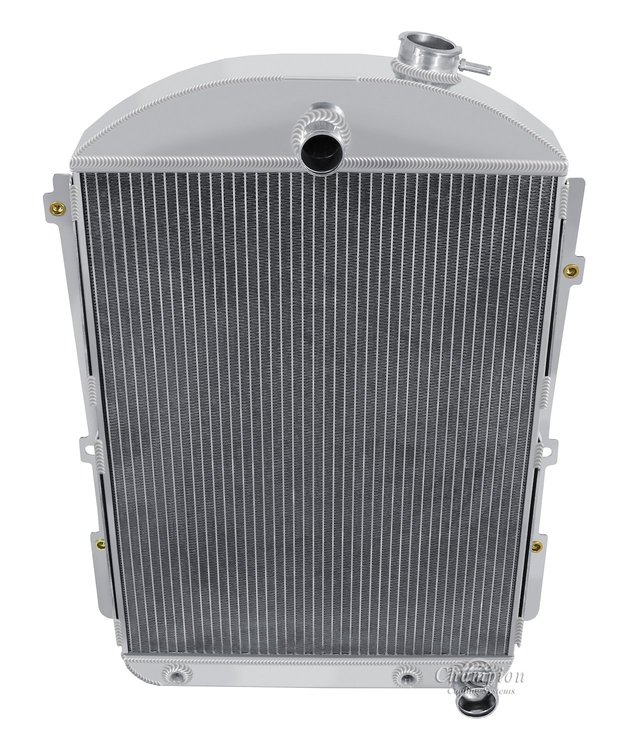

CC38CH All Aluminum Radiator for 1938 Chevrolet Master With V8 Conversion
$25499
6 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy
All-Aluminum Radiator1938 Chevrolet Master with Chevy V8 Conversion Champion Core 3-Row
Dimensions for Champion Cooling Radiator CC38CH
Champion Cooling Systems CC38CH All Aluminum Radiator for 1938 Chevrolet Master With V8 Conversion Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Bracket mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height7.0
Package Width22.0
Package Length31.0
Weight16.23 PG
Overall Height28.125 in. (714.375 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
QuantitySold individually
Mounting Hardware IncludedNo
Inlet LocationCenter upper
Inlet Size (In.)1 1/2
Core Height22 in (558.8 mm)
MountingBracket
Core Thickness2.25 in (57.15 mm)
Core Width16.875 in (428.625 mm)
Row Quantity3
Outlet LocationLower passenger side
Overall Width19.25 in (489 mm)
Radiator TypeEngine Conversion
Radiator FinishNatural
Transmission Cooler1/2-20 straight, inverted flare
Radiator StyleDownflow
Vendor Part NumberCC38CH
Package Qty1
Package TypeEA
