Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC4252CH-BLK

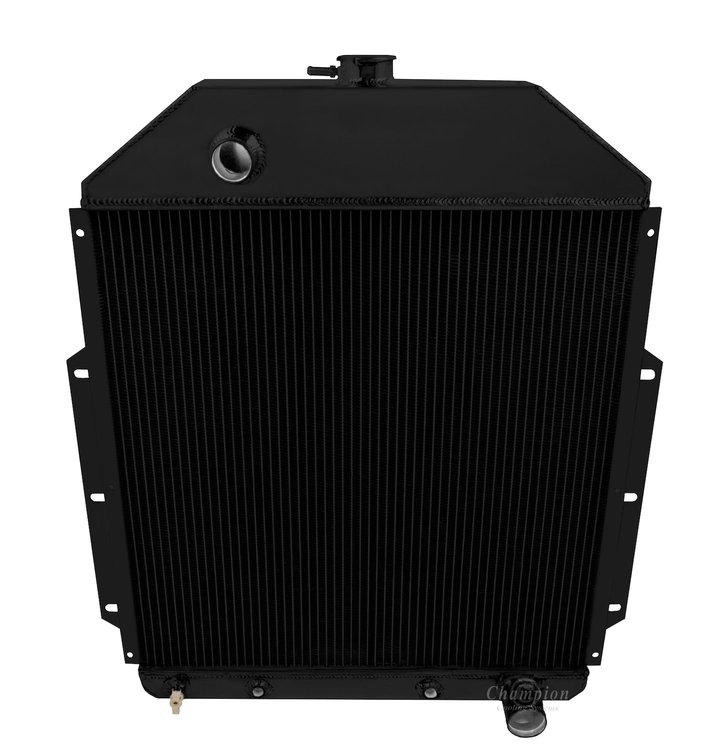

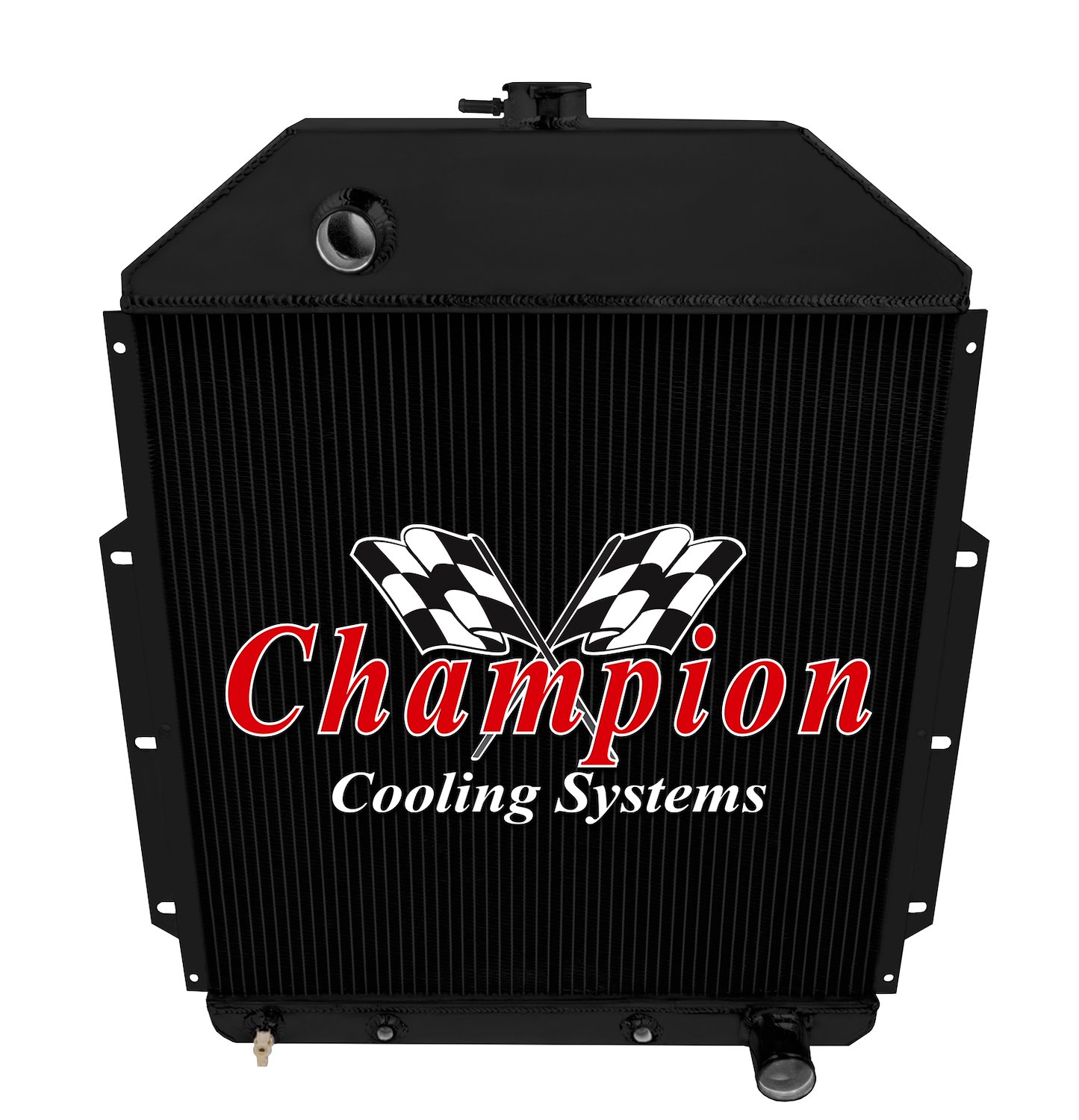

CC4252CH-BLK All-Aluminum Radiator for 1942-1952 Ford Truck w/ Chevy Conversion [Black]
$26999
Ships on 09/15/2026
Lowest Price GuaranteeFord
All-Aluminum Radiator1942-1952 Ford Truck with Chevy Conversion Champion Core 3-Row Semi-Gloss Black Finish
Champion Cooling Systems CC4252CH-BLK All-Aluminum Radiator Features:
- Long lasting semi-gloss black finish
- Resists chipping & peeling
- Tolorates up to 300 Deg F
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Bracket mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height6.8
Package Width27.3
Package Length31.2
Weight19.21 PG
Part CategoryReplacement Parts
Overall Height28.50 in.
Outlet Size1 3/4 in.
Radiator Cap IncludedYes
Inlet LocationUpper driver side
Internal Transmission Oil CoolerYes
Mounting TypeBracket
Inlet Size (In.)1 1/2
Core Height21.50 in.
Core Thickness2.25 in (57.15 mm)
Core Width20.875 in.
Row Quantity3
Outlet LocationLower passenger side
Core MaterialAluminum
Overall Width25.00 in.
Down Flow Or Cross Flow TypeDown Flow
Radiator FinishNatural
Transmission Cooler1/2-20 straight, inverted flare
Part FitmentDirect Fit
Vendor Part NumberCC4252CH-BLK
Package Qty1
Package TypeEA
