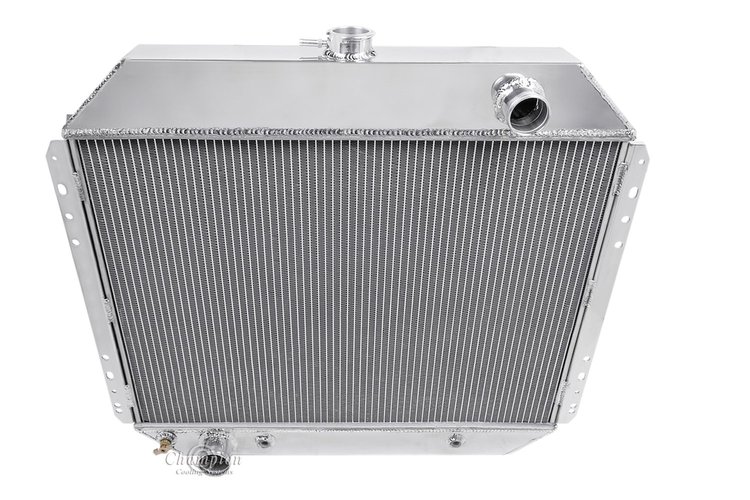

3-Row Aluminum Radiator 1968-1979 Ford F-Series Pickup Truck V8, 1978-1979 Ford Bronco V8, Raw Finish
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC433B

3-Row Aluminum Radiator 1968-1979 Ford F-Series Pickup Truck V8, 1978-1979 Ford Bronco V8, Raw Finish

$28498
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

Ford
3-Row Aluminum Radiator
  • 1968-1979 Ford F-Series Pickup Truck 302/360/390ci V8
  • 1978-1979 Ford Bronco 351/400ci V8
  • Raw Finish

    Dimensions

    Champion Cooling CC433B 3-Row Aluminum Radiator Features:

    • Includes 13 lb. Radiator Cap
    • Champion Core 3-Row Aluminum Radiator
    • All Aluminum 2 mm Thick Tanks, Fittings, and Brackets
    • Billet Radiator Fill Neck
    • OEM-Style Brass Petcock
    • Brazed Core Technology
    • Max Cool Louvered Fins, 14-16 Fins per Inch
    • 100% Tig Welded
    • 3/8 (.375) in. Spaced Tubes
    • 1/8-27 NPT Transmission Cooler Connections
    • Mounting Specs: Vertical - 16.500 in. x Horizontal - 27 3/8 (.375) in.
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height7.5
    Package Width28.2
    Package Length32.0
    Weight24.09 PG
    Part CategoryPerformance Parts
    Overall Height26.375 in.
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting Type1/8-27 NPT
    Outlet Diameter2 in.
    QuantitySold individually
    Inlet LocationPassenger
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    Core Height19.25 in.
    Core Thickness2.5 in.
    Core Width26.375 in.
    Row Quantity3
    Outlet LocationDriver
    Core MaterialAluminum
    Overall Width29.5 in.
    Inlet Diameter1.75 in.
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishNatural
    Fan IncludedNo
    Transmission Cooler1/8-27 NPT
    Part FitmentDirect Fit
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Package Qty1
    Package TypeEA
