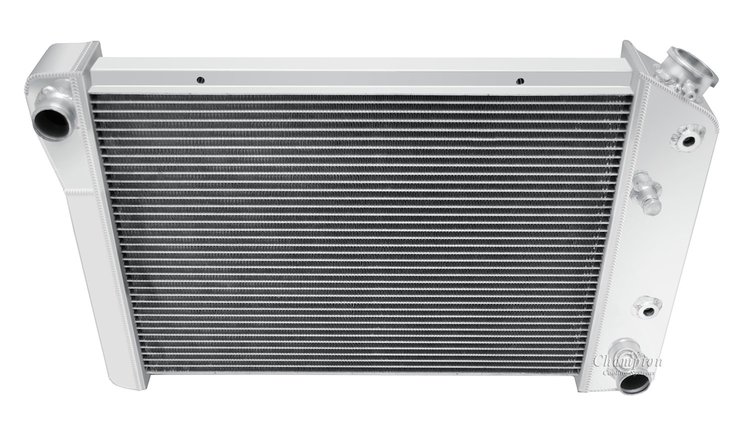

All-Aluminum Radiator
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC469

All-Aluminum Radiator

$28498
10 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49
Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

JEGS

Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

Part Number : 555-16055
$399$4.99
You Save$1.00

Chevy
    All-Aluminum Radiator
  • 1971-1977 Chevrolet Vega with V8 Engine Swap
  • 1978-1980 Chevrolet Monza 2.3L, 3.2L, 3.8L, 5.0L*
  • Champion Core 3-Row

    Fitment Notes:

    To use this radiator on a 1978-1980 Monza with a 5.0L engine, the power steering pump must be relocated to a remote location.

    To use this radiator on a 1971-1977 Vega with a V8 engine swap, custom saddle mounts will have to be fabricated for the bottom edge.

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height6.25
Package Width20.25
Package Length28.5
Weight14.115 PG
Overall Height17.375 in.
Outlet Size1.5 in (38.1 mm)
Radiator MaterialAluminum
Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
Outlet Diameter1.5 in.
Quantity1
Inlet LocationDriver
Internal Transmission Oil CoolerYes
Mounting TypeSaddle
Inlet Size (In.)1 1/2
Core Height14.5 in.
Core Thickness2.25 in.
Core Width20.375 in.
Outlet LocationPassenger
Core MaterialAluminum
Overall Width26.125 in.
Inlet Diameter1.5 in.
Down Flow Or Cross Flow TypeCross Flow
Part FitmentDirect Fit
Tank MaterialAluminum
Core Row Quantity3 Row
Vendor Part NumberCC469
Package Qty1
Package TypeEA
