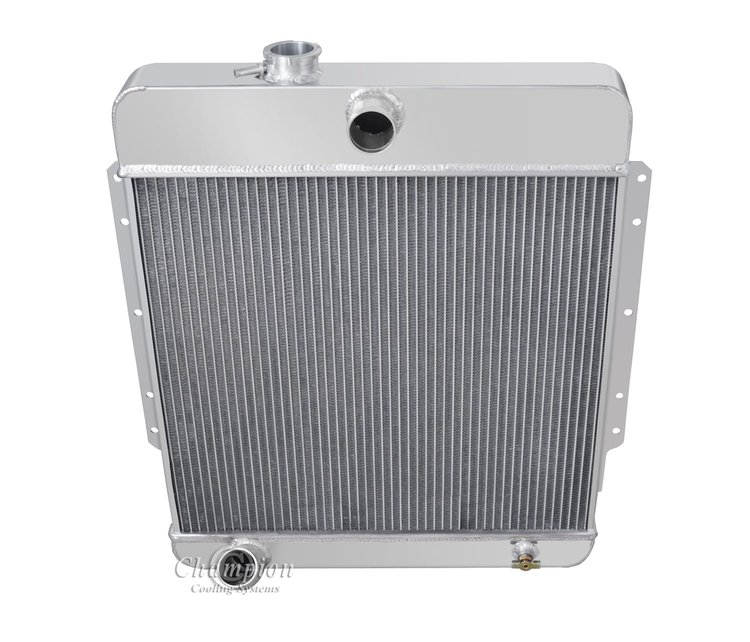

All-Aluminum Radiator 1949-1956 Cadillac
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC4956

All-Aluminum Radiator 1949-1956 Cadillac

$28498
ShippingShips on 12/09/2026
Lowest PriceLowest Price Guarantee

Items You Need

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

JEGS

Manual-Controlled Single Fan Wiring Harness & Relay Kit 30 Amp

Part Number : 555-10559
$3199$34.49
You Save$2.50
Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

JEGS

Single Electric Fan Wiring Harness & Relay Kit 30 Amp [200 degrees on 185 degrees off]

Part Number : 555-10561
$4250$46.99
You Save$4.49
Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

JEGS

Heavy-Duty Nitrile Gloves [7 mils Thick, Large]

Part Number : 555-1124
$1799$19.99
You Save$2.00
Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

JEGS

Stainless Steel Hose Clamps 1 1/4 in. to 2 in. OD

Part Number : 555-16055
$399$4.99
You Save$1.00

Cadillac
    All-Aluminum Radiator
  • 1949-1956 Cadillac Series 60/61/62/75 331/365ci
  • Champion Core 3-Row

    Radiator Specifications:
    Core Dimensions:18" (H) x 19-3/4" (W)
    Overall Dimensions:25-1/4" (H) x 22-1/2" (W)
    Hose Locations:In: Center
    Out: Driver
    Hose Fittings:In: 1-3/4"
    Out: 1-3/4"
    Transcooler:No
    Mount Type:Bracket

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height8.25
Package Width25.25
Package Length27.0
Weight17.82 PG
Overall Height25.25 in.
Outlet Diameter1.75 in.
Inlet LocationCenter
Internal Transmission Oil CoolerNo
Mounting TypeBracket
Core Height18 in.
Core Thickness2.25 in.
Core Width19.75 in.
Outlet LocationDriver
Core MaterialAluminum
Overall Width22.5 in.
Inlet Diameter1.75 in.
Down Flow Or Cross Flow TypeDown Flow
Part FitmentDirect Fit
Tank MaterialAluminum
Core Row Quantity3 Row
Vendor Part NumberCC4956
Package Qty1
Package TypeEA
