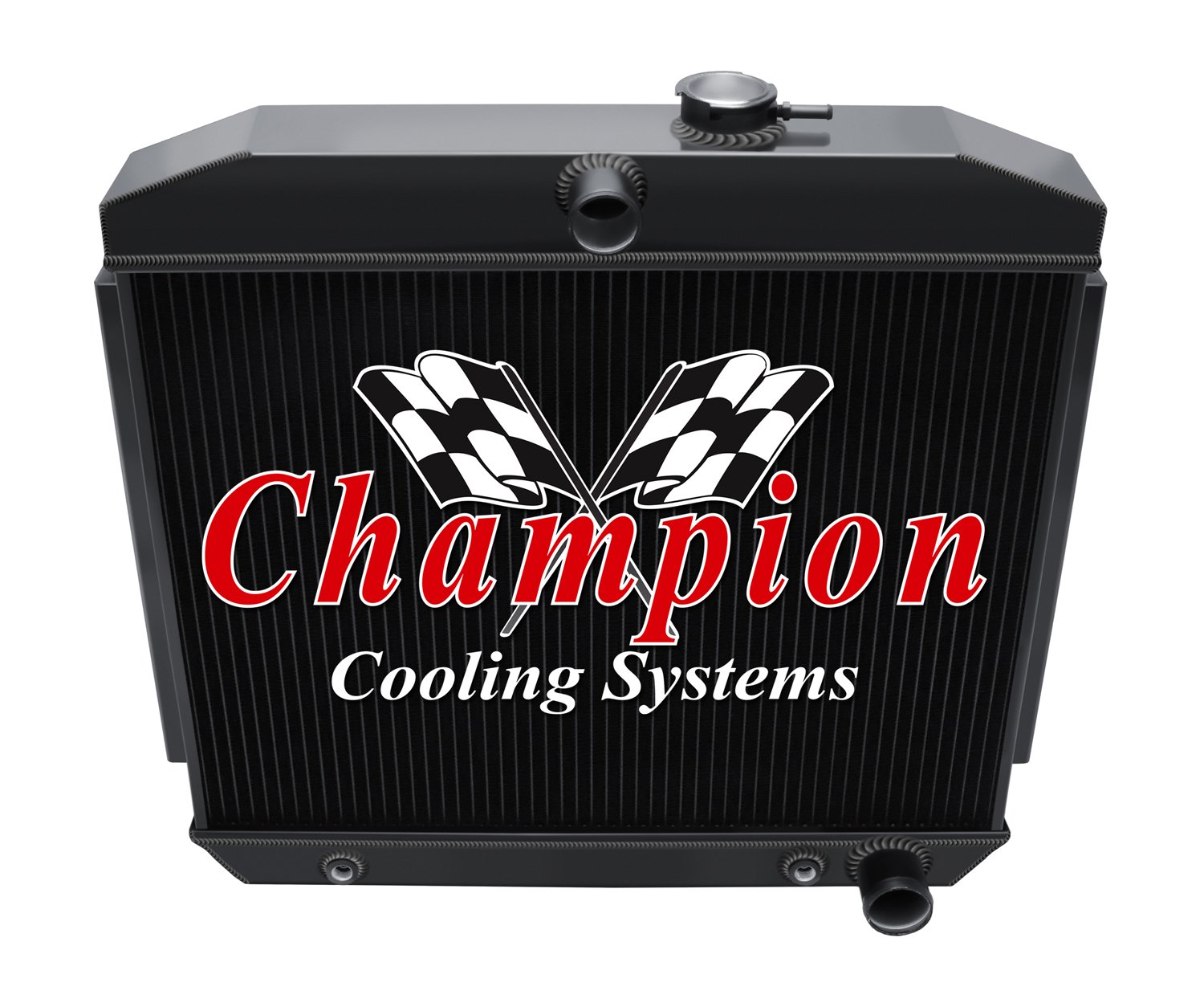

3-Row Aluminum Radiator 1955-1957 Chevy Bel-Air/Nomad/150/210-Series 4.3/4.6L V8, Semi-Gloss Black Finish
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC5057B-BLK

3-Row Aluminum Radiator 1955-1957 Chevy Bel-Air/Nomad/150/210-Series 4.3/4.6L V8, Semi-Gloss Black Finish

$31498
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

GM
3-Row Aluminum Radiator
  • 1955-1957 Chevy Bel-Air/Nomad 4.3/4.6L V8
  • 1955-1957 Chevy 150/210-Series 4.3/4.6L V8
  • Semi-Gloss Black Finish

    Dimensions



    Features:

    • Champion Core 3-Row Aluminum Radiator
    • All Aluminum 2 mm Thick Tanks, Fittings and Brackets
    • Billet Radiator Fill Neck
    • OEM-Style Brass Petcock
    • Brazed Core Technology
    • Max Cool Louvered Fins, 14-16 Fins per Inch
    • 100% Tig Welded
    • 3/8 (.375) in. Spaced Tubes
    • 1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
    • Mounting Brackets: 23 5/8 (.625) in.
    • 13 lb. Radiator Cap Included
    • Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.

      • Stay Cool and Look Cool with Champion Core Semi-Gloss Black Radiators!

      Champion Cooling introduces their 3-Row Aluminum Radiators now with a long-lasting semi-gloss black finish. This new water-based coating is resistant to chipping, peeling, chemicals and is heat tolerant up to 300 degrees F. Expect the same sufficient cooling capacity for strip or strip vehicles, brazed-core technology with all-welded seams (without epoxy) and included standard radiator cap, now all with an eye-catching finish!

    Part TypeRadiator
    Product LineChampion Cooling Systems 3-Row Aluminum Semi-Gloss Black Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height8.0
    Package Width25.5
    Package Length26.0
    Weight20.6 PG
    Overall Thickness3 in (76.2 mm)
    Overall Height24.5 in.
    Radiator Cap IncludedYes
    Inlet LocationCenter
    Inlet Size (In.)1 1/2
    Core Width21.5 in.
    Row Quantity3
    Core MaterialAluminum
    Overall Width23.75 in.
    Inlet Diameter1.5 in.
    Tube Size0.625 in (15.9 mm)
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishSemi-gloss black
    Transmission CoolerYes
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Bracket MaterialAluminum
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
    Outlet Diameter1.75 in.
    QuantitySold individually
    Internal Transmission Oil CoolerYes
    Mounting TypeOEM
    Core Height17.25 in.
    Core Thickness2.5 in.
    Mounting Brackets IncludedYes
    Outlet LocationPassenger
    Fan IncludedNo
    Part FitmentDirect Fit
    Vendor Part NumberCC5057B-BLK
    Package Qty1
    Package TypeEA
