![CC5057B All-Aluminum Radiator for 1955-1957 Chevy Bel-Air/Nomad/150/210-Series 4.3/4.6L V8 [3/4 in. Tubes]](https://www.jegs.com/images/mini_750/100/166/166-cc5057b.jpg)
Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC5057B

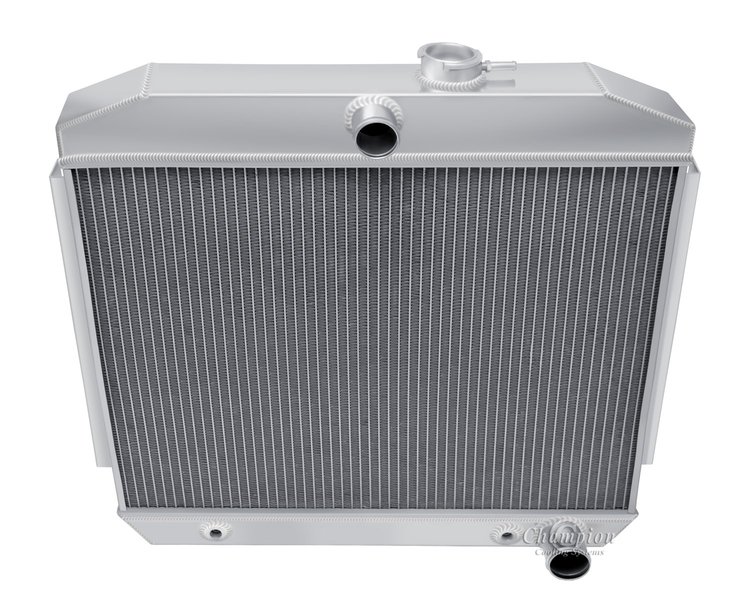

CC5057B All-Aluminum Radiator for 1955-1957 Chevy Bel-Air/Nomad/150/210-Series 4.3/4.6L V8 [3/4 in. Tubes]
$28498
Ships on 11/24/2026
Lowest Price GuaranteeItems You Need
![16705 Service Pro Antifreeze Concentrate [1 gallon]](https://www.jegs.com/images/mini_200/700/708/708-16705.jpg)
![No Spill Coolant Filling Funnel Kit [15-Piece]](https://www.jegs.com/images/mini_200/500/555/555-51220.jpg)
![Racing Super Coolant Additive [16 oz.]](https://www.jegs.com/images/mini_200/500/555/555-72324.jpg)
![Racing Coolant and Antifreeze with LP-3 [1 Gallon]](https://www.jegs.com/images/mini_200/500/555/555-72316.jpg)
JEGS
Part Number : 555-72316
$2526$36.99
You Save$11.73
![Ice Water Racing Coolant [1 Gallon, Non-Glycol]](https://www.jegs.com/images/mini_200/500/555/555-72314.jpg)
![Funnel [8.5 in. Overall Length]](https://www.jegs.com/images/mini_200/500/555/555-w4064.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Heavy-Duty Steel Workbench [59.5 in. x 27.5 in. Bench Top]](https://www.jegs.com/images/mini_200/500/555/555-81440.jpg)
![Workbench Utility Mat [24 in. x 16 in.]](https://www.jegs.com/images/mini_200/500/555/555-80170.jpg)
Chevy
All-Aluminum Radiator1955-1957 Chevy Bel-Air/Nomad 4.3/4.6L V8 1955-1957 Chevy 150/210-Series 4.3/4.6L V8 Champion Core 3-Row 3/4 in Tubes
Champion Cooling System CC5057B All-Aluminum Radiator Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Bracket mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width25.5
Package Length26.0
Weight20.6 PG
Overall Height24.5 in.
Outlet Size1 3/4 in.
Radiator Cap IncludedYes
Radiator MaterialAluminum
Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
Outlet Diameter1.75 in.
Inlet LocationCenter
MaterialAluminum
Internal Transmission Oil CoolerYes
Mounting TypeOEM
Inlet Size (In.)1 1/2
Core Height17.25 in.
Core Thickness2.5 in.
Core Width21.5 in.
Row Quantity3
Outlet LocationPassenger
Core MaterialAluminum
Overall Width23.75 in.
Inlet Diameter1.5 in.
Radiator TypePerformance Replacement
Down Flow Or Cross Flow TypeDown Flow
Radiator FinishNatural
Transmission Cooler1/2-20 straight, inverted flare
Tank MaterialAluminum
Core Row Quantity3 Row
Vendor Part NumberCC5057B
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
