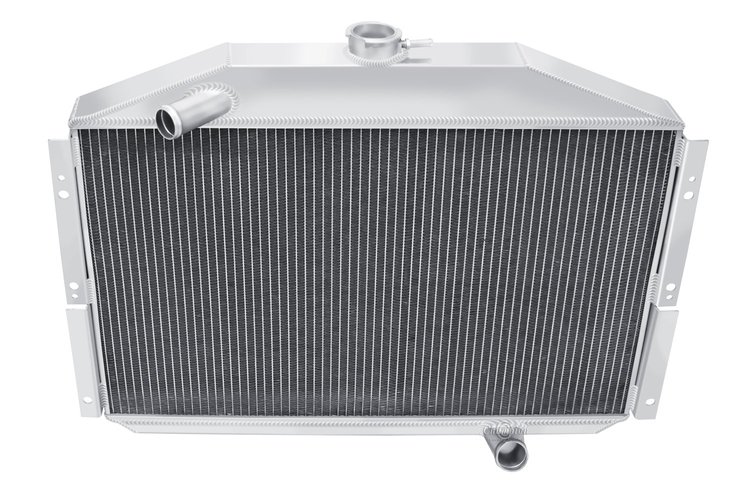

All-Aluminum Radiator 1953-1955 Studebaker Champion/Commander, 1953 Studebaker President
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC5355

All-Aluminum Radiator 1953-1955 Studebaker Champion/Commander, 1953 Studebaker President

$28498
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

High-Flow 160 degree Thermostat for 1978-Earlier Mopar, Chrysler, Dodge

JEGS

High-Flow 160 degree Thermostat for 1978-Earlier Mopar, Chrysler, Dodge

Part Number : 555-53230
$859$9.99
You Save$1.40
High-Flow 180 degree Thermostat for 1978-Earlier Mopar, Chrysler, Dodge

JEGS

High-Flow 180 degree Thermostat for 1978-Earlier Mopar, Chrysler, Dodge

Part Number : 555-53231
$769$8.99
You Save$1.30
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30

Studebaker
All-Aluminum Radiator
  • 1953-1955 Studebaker Champion/Commander
  • 1953 Studebaker President
  • Champion Core 3-Row

    CC5355 Features:

    • Includes 13 lb. cap
    • Upper Tank Thickness: 3.125 in.
    • Lower Tank Thickness: 2.500 in.
    • 100% TIG welded
    • 3/8 in. spaced tubes
    • 2 mm thick tanks and fittings
    • Brass petcock
    • Brazed core
    • 14-16 fins per inch
    • Billet fill neck
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height2.37
    Package Width19.87
    Package Length26.75
    Weight18.0 PG
    Overall Thickness2.375 in (60.3 mm)
    Overall Height19.875 in.
    Radiator Cap IncludedYes
    Inlet LocationDriver
    Inlet Size (In.)1 1/4
    Core Width24.75 in.
    Row Quantity3
    Core MaterialAluminum
    Overall Width26.75 in.
    Inlet Diameter1.25 in.
    Down Flow Or Cross Flow TypeDown Flow
    Transmission CoolerNo
    Product Width26.750 in. (679.450 mm)
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Bracket MaterialAluminum
    Radiator StyleDownflow
    Outlet Size1.5 in (38.1 mm)
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    Outlet Diameter1.5 in.
    QuantitySold individually
    Internal Transmission Oil CoolerNo
    Mounting TypeBracket
    Core Height15 in.
    Core Thickness2 in (50.8 mm)
    Mounting Brackets IncludedYes
    Outlet LocationPassenger
    Fan IncludedNo
    Part FitmentDirect Fit
    Bracket FinishPolished
    Vendor Part NumberCC5355
    Package Qty1
    Package TypeEA
