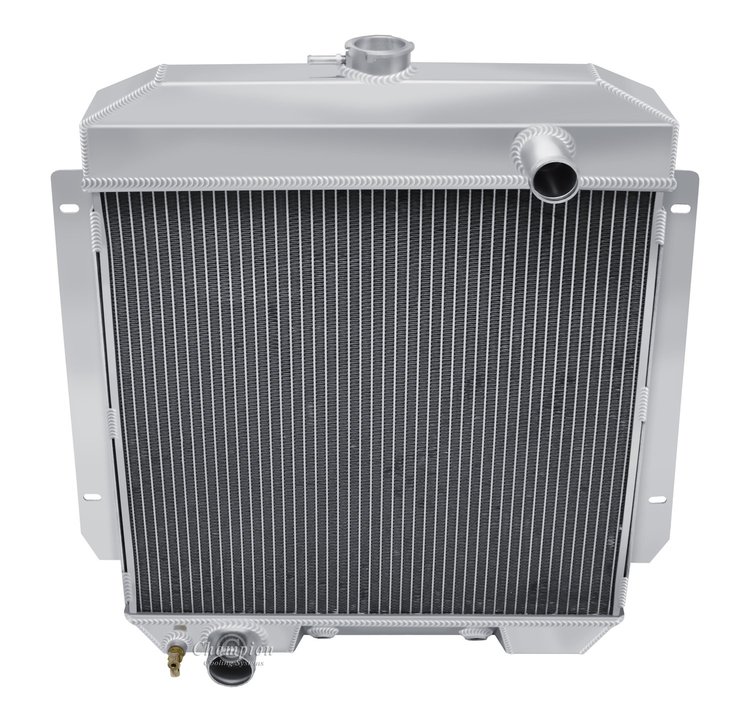

All-Aluminum Radiator 1954 Mercury Custom/Monterey 4.2L
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC54B

All-Aluminum Radiator 1954 Mercury Custom/Monterey 4.2L

$25499
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Ford/Lincoln/Mercury
All-Aluminum Radiator
  • 1954 Mercury Custom/Monterey 4.2L
  • Champion Core 3-Row

    CC54B Features:

    • Includes 13 lb. Cap
    • Tank Thickness: 3.250 in. (Upper), 2.750 in. (Lower)
    • 100% TIG Welded
    • 3/8 in. Spaced Tubes
    • 2 mm Thick Tanks and Fittings
    • Brass Petcock
    • Brazed Core
    • 14-16 Fins per inch
    • Billet Fill Neck
    • Transmission Cooler Thread: 1/8-27 in. NPT
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Package Height3.25
    Package Width23.0
    Package Length25.25
    Weight17.5 PG
    Overall Height25.25 in (641.4 mm)
    Outlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold individually
    Inlet LocationPassenger Side
    Inlet Size (In.)1 1/2
    Core Height18.5 in (469.9 mm)
    Core Thickness2.5 in (63.5 mm)
    Core Width18.375 in (466.725 mm)
    Row Quantity3
    Outlet LocationDriver
    Overall Width23 in (584.2 mm)
    Fan IncludedNo
    Transmission Cooler1/8-27 NPT
    Part FitmentDirect Fit
    Radiator StyleDownflow
    Vendor Part NumberCC54B
    Package Qty1
    Package TypeEA
