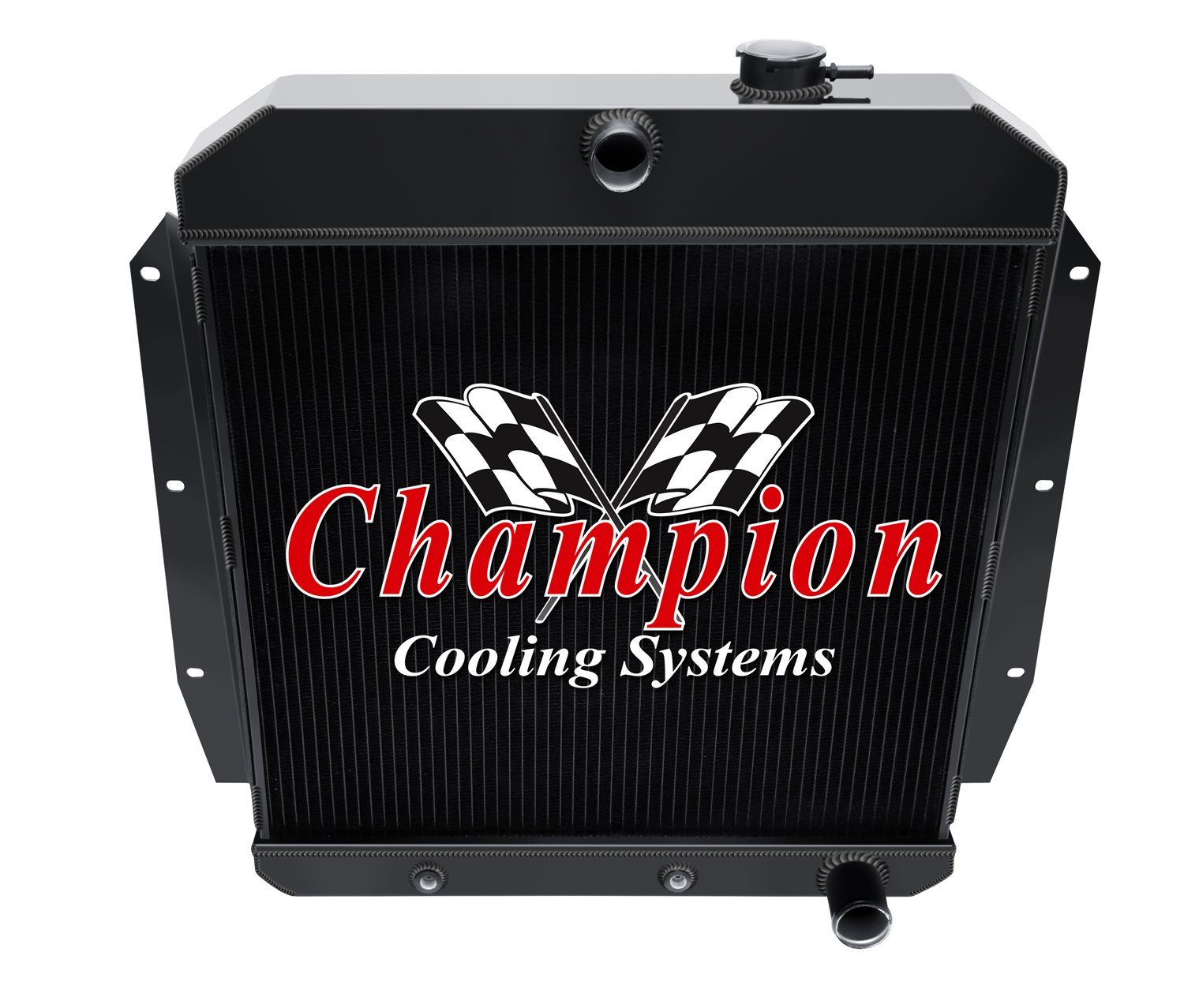

3-Row Aluminum Radiator 1955-1959 Chevy Pickup Truck, Semi-Gloss Black Finish

Name: 3-Row Aluminum Radiator 1955-1959 Chevy Pickup Truck, Semi-Gloss Black Finish
Brand: CHAMPION COOLING SYSTEMS
SKU: 166-CC5559-BLK
Price: 314.98 USD
Availability: InStock

^$314⁹⁸

Ships on 11/10/2026

Lowest Price Guarantee

3-Row Aluminum Radiator

1955-1959 Chevy Pickup Truck

Semi-Gloss Black Finish

Dimensions

Features:

Champion Core 3-Row Aluminum Radiator
All Aluminum 2 mm Thick Tanks, Fittings and Brackets
Billet Radiator Fill Neck
OEM-Style Brass Petcock
Brazed Core Technology
Max Cool Louvered Fins, 14-16 Fins per Inch
100% Tig Welded
3/8 (.375) in. Spaced Tubes
1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
Mounting Specs: Vertical - 13 3/4 (.750) in. x Horizontal - 25 3/4 (.750) in.
13 lb. Radiator Cap Included
Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.

Stay Cool and Look Cool with Champion Core Semi-Gloss Black Radiators!

Champion Cooling introduces their 3-Row Aluminum Radiators now with a long-lasting semi-gloss black finish. This new water-based coating is resistant to chipping, peeling, chemicals and is heat tolerant up to 300 degrees F. Expect the same sufficient cooling capacity for strip or strip vehicles, brazed-core technology with all-welded seams (without epoxy) and included standard radiator cap, now all with an eye-catching finish!

Part TypeRadiator

Product LineChampion Cooling Systems 3-Row Aluminum Semi-Gloss Black Radiators

BrandCHAMPION COOLING SYSTEMS

Package Height7.5

Package Width28.0

Package Length30.0

Weight20.9 PG

Overall Height26.75 in.

Radiator Cap IncludedYes

Inlet LocationCenter

Inlet Size (In.)1 1/2

Core Width21.75 in.
