Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC5559-LS

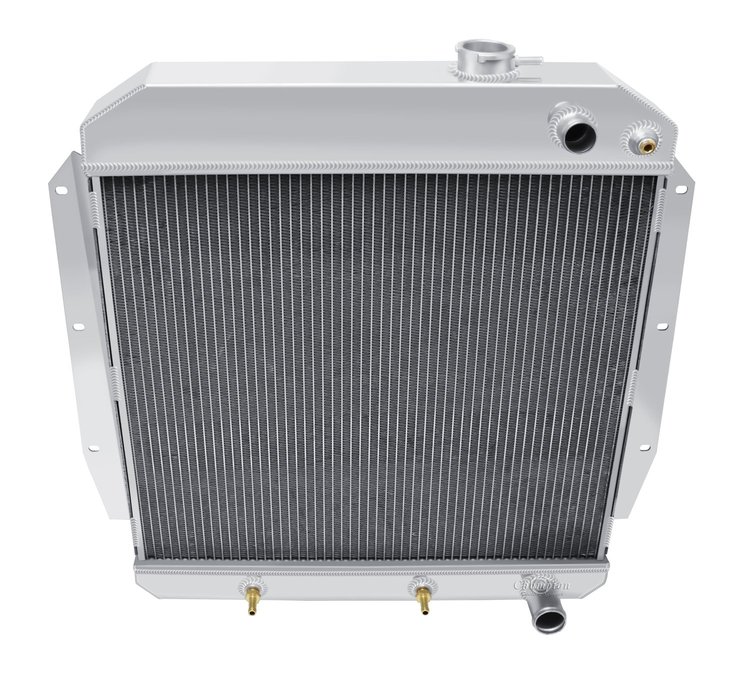

CC5559-LS GM LS Conversion/Dual-Pass Radiator for 1955-1959 Chevy Pickup Truck, Suburban 3.8/4.3/4.6/5.3/5.7L
$25499
More than 10 available
Ships Tomorrow
Lowest Price GuaranteeGM Truck
GM LS Conversion/Dual-Pass Radiator1955-1959 Chevy Pickup Truck, Suburban 3.8/4.3/4.6/5.3/5.7L Champion Core 3-Row Aluminum Sold Individually
Champion Cooling CC5559-LS Features:
- Includes (1) 13 lb. radiator cap
- 100-percent TIG-welded construction
- 2 mm thick aluminum tank, fittings, and brackets
- Billet filler neck
- OE-style brass petcock
- Brazed core technology with 3/8 in. spaced cooling tubes
- Max Cool Louvered Technology with 14-16 cooling fins per inch
Fitment Notes:
- Designed for a GM LS engine swap on the following:
- 1955-1959 Chevrolet Truck 3.8L 235ci L6, 4.3L 261ci L6, 4.3L 265ci V8, 4.6L 283ci V8, 5.3L 322ci V8, 5.7L 348ci V8
- 1955-1959 Chevrolet Suburban 3.8L 235ci L6, 4.3L 265ci V8, 4.6L 283ci V8, 5.3L 324ci V8
- 1959 Chevrolet 3B 3.8L 235ci L6, 4.6L 283ci V8
- 1959 Chevrolet 3C 3.8L 235ci L6, 4.6L 283ci V8
- 1959 Chevrolet 3D 3.8L 235ci L6, 4.6L 283ci V8
- 1959 Chevrolet 3E 3.8L 235ci L6, 4.6L 283ci V8
- 1959 Chevrolet 3F 3.8L 235ci L6, 4.6L 283ci V8
- 1959 Chevrolet 3G 3.8L 235ci L6, 4.6L 283ci V8
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height4.25
Package Width26.12
Package Length26.87
Weight20.0 PG
Overall Thickness3.125 in (79.4 mm)
Overall Height26.125 in.
Radiator Cap IncludedYes
Outlet Quantity1
Inlet LocationUpper passenger side
Inlet Size (In.)1.25
Core Width21.625 in (549.275 mm)
Cooler Fitting Size1/2 in.-20 Straight Thread, Inverted Flare
Row Quantity3
Overall Width26.875 in.
Tube Size0.375 in (9.5 mm)
Radiator FinishPolished
Inlet Quantity1
Transmission CoolerYes
Maximum Fan Cfm2,200 cfm
Bracket MaterialAluminum
Radiator StyleDownflow
Outlet Size1.5 in (38.1 mm)
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Mounting TypeBracket
Inlet AttachmentHose
Core Height19.375 in (492.125 mm)
Core Thickness2.25 in (57.15 mm)
Mounting Brackets IncludedYes
Outlet LocationLower passenger side
Outlet AttachmentHose
Fan IncludedNo
Part FitmentDirect Fit
Bracket FinishPolished
Vendor Part NumberCC5559-LS
Package Qty1
Package TypeEA
