![CC561B All-Aluminum Radiator for Select 1980-1984 Ford F-Series Trucks [3/4 in. Tubes]](https://www.jegs.com/images/mini_750/100/166/166-cc561b.jpg)
Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC561B

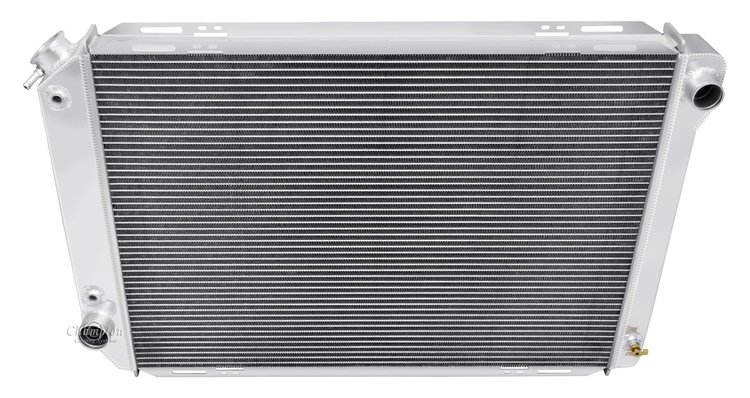

CC561B All-Aluminum Radiator for Select 1980-1984 Ford F-Series Trucks [3/4 in. Tubes]
$25499
3 left in stock
Ships Tomorrow
Lowest Price GuaranteeFord
All-Aluminum Radiator1980-1984 Ford F-Series Trucks 5.0L, 5.8L, 6.6L 1981-1984 Ford Bronco 5.0L, 5.8L Champion Core 3-Row 3/4 in. Tubes
Champion Cooling Systems CC561B All-Aluminum Radiator Features:
- Includes (1) 13 lb. radiator cap
- 100-percent tig-welded construction with brazed-core technology
- 2 mm thick aluminum end tanks and fittings
- All-billet filler neck
- OEM-style brass petcock drain
- 3/8 in. spaced cooling tubes
- Max Cool louvered technology with 14-16 fins per inch
- Bracket mounting style
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height6.7
Package Width23.5
Package Length35.0
Weight21.74 PG
Part CategoryReplacement Parts
Outlet Size1 3/4 in.
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet LocationUpper passenger side
MaterialAluminum
Internal Transmission Oil CoolerYes
Mounting TypeBracket
Inlet Size (In.)1 1/2
Core Height19.625 in.
MountingBracket
Core Thickness2.5 in (63.5 mm)
Core Width27.50 in.
Row Quantity3
Outlet LocationLower driver side
Core MaterialAluminum
Overall Width21.125 in.
Radiator TypePerformance Replacement
Down Flow Or Cross Flow TypeCross Flow
Radiator FinishNatural
Transmission Cooler1/4-18 in. NPT
Part FitmentDirect Fit
Vendor Part NumberCC561B
Package Qty1
Package TypeEA
