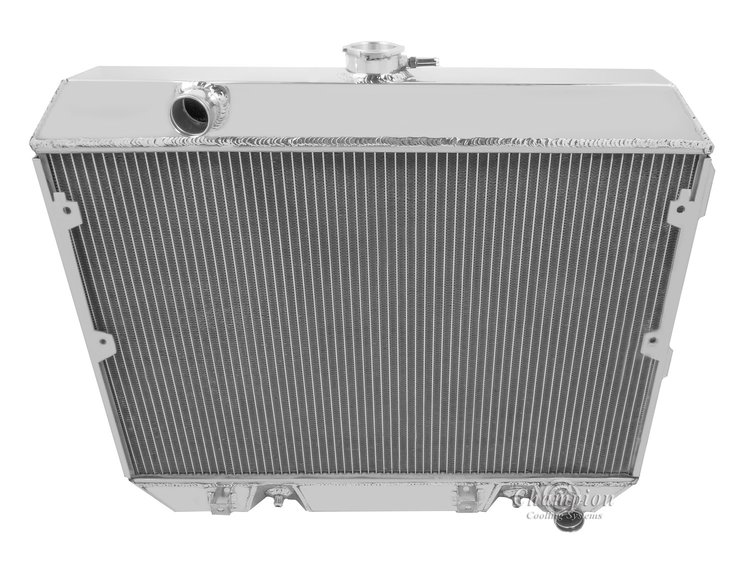

CC634 All-Aluminum Radiator for 1975-1978 Datsun/Nissan 280Z w/2.8L 6 cyl.
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC634

CC634 All-Aluminum Radiator for 1975-1978 Datsun/Nissan 280Z w/2.8L 6 cyl.

$28498
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Aluminum Fan Shroud

CHAMPION COOLING SYSTEMS

Aluminum Fan Shroud

Part Number : 166-FS634-2X12
$14799
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30
Racing Super Coolant Additive [16 oz.]

JEGS

Racing Super Coolant Additive [16 oz.]

Part Number : 555-72324
$1199$13.89
You Save$1.90

Datsun/Nissan
All-Aluminum Radiator
  • 1975-1978 Datsun/Nissan 280Z w/ 2.8L Straight 6 Engine
  • Champion Core 3-Row

    Champion Cooling Systems CC634 All-Aluminum Radiator Features:

    • Includes (1) 13 lb. radiator cap
    • 100-percent tig-welded construction with brazed-core technology
    • 2 mm thick aluminum end tanks and fittings
    • All-billet filler neck
    • OEM-style brass petcock drain
    • 3/8 in. spaced cooling tubes
    • Max Cool louvered technology with 14-16 fins per inch
    • Bracket mounting style
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height6.7
    Package Width24.3
    Package Length30.4
    Weight17.4 PG
    Part CategoryReplacement Parts
    Overall Height21.75 in.
    Inlet LocationDriver
    UpperDRIVER
    Core Width24.375 in.
    Core MaterialAluminum
    Overall Width27.5 in.
    Inlet Diameter1.375 in.
    Down Flow Or Cross Flow TypeDown Flow
    RadiatorDOWN FLOW
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Transmission Oil Cooler Fitting TypeM12-1.25
    In1.5
    Outlet Diameter1.375 in.
    3 Row Tank Size2.75
    Trans CoolerMetric 12-1.25
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    Out1.5
    Core Height16 in.
    MountingBracket
    Core Thickness2.25 in.
    Outlet LocationPassenger
    LowerPASS
    Part FitmentDirect Fit
    Vendor Part NumberCC634
    Package Qty1
    Package TypeEA
