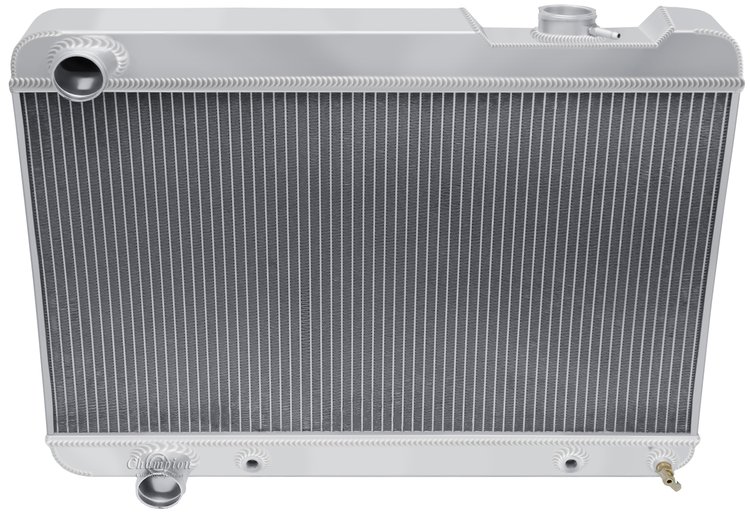

All-Aluminum Radiator 1964 Oldsmobile Cutlass, 442, F85 5.4L
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC640L

All-Aluminum Radiator 1964 Oldsmobile Cutlass, 442, F85 5.4L

$25499
1 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Oldsmobile
All-Aluminum Radiator
  • 1964 Oldsmobile Cutlass, 442, F85 5.4L
  • Champion Core 3-Row

    CC640L Features:

    • Includes 13 lb. Cap
    • Tank Thickness: 2.500 in.
    • 100% TIG Welded
    • 3/8 in. Spaced Tubes
    • 2 mm Thick Tanks and Fittings
    • Brass Petcock
    • Brazed Core
    • 14-16 Fins per inch
    • Billet Fill Neck
    • Transmission Cooler Thread: 1/2-20 in., Inverted Flare
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Package Height6.25
    Package Width24.06
    Package Length28.5
    Weight16.4 PG
    Overall Height20.625 in (523.9 mm)
    Outlet Size1.75 in (44.5 mm)
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold individually
    Inlet LocationDriver side
    Mounting TypeSaddle
    Inlet Size (In.)1.75
    Core Height15.5 in (393.7 mm)
    Core Thickness2.25 in (57.15 mm)
    Core Width25.125 in (638.175 mm)
    Row Quantity3
    Outlet LocationDriver
    Overall Width25.25 in (641.4 mm)
    Fan IncludedNo
    Transmission Cooler1/2-20 straight, inverted flare
    Part FitmentDirect Fit
    Radiator StyleDownflow
    Package Qty1
    Package TypeEA
