All-Aluminum Radiator 1972-9175 Jensen Healey
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC7454

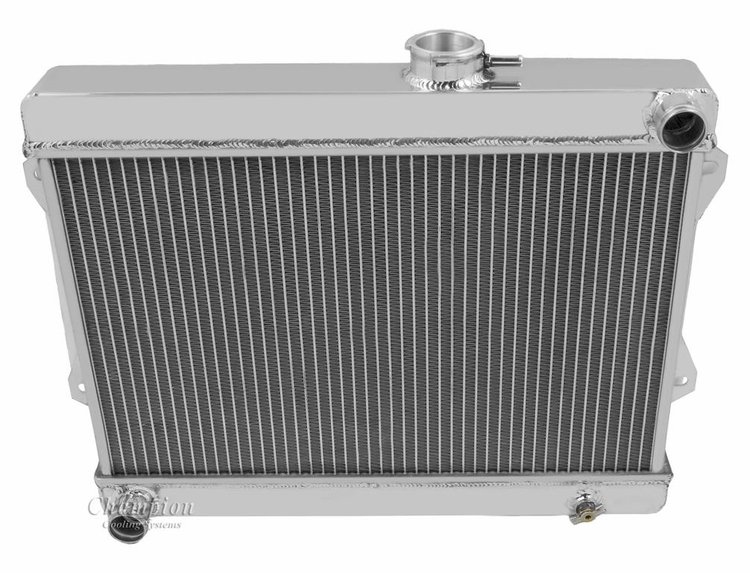

All-Aluminum Radiator 1972-9175 Jensen Healey

$28498
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Jensen Healey
    All-Aluminum Radiator
  • 1972-1975 Jensen Healey
  • Champion Core 3-Row

    Radiator Specifications:
    Core Dimensions: 11-3/4" (H) x 19" (W)
    Overall Dimensions:16-1/2" (H) x 21-7/8" (W)
    Hose Locations: In: Passenger
    Out: Driver
    Hose Fittings: In: 1-1/8"
    Out: 1-1/3"
    Transcooler: No Trans
    Mount Type: Bracket

    Stay Cool with Champion Core Radiators

    Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

    Show More

    When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

    Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

    Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

Part TypeRadiator
Product LineChampion 3-Row/Core Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height7.0
Package Width19.3
Package Length26.8
Weight12.01 PG
Overall Height16.5 in.
Inlet LocationPassenger
UpperPASS
Core Width19 in.
Core MaterialAluminum
Overall Width21.875 in.
Inlet Diameter1.125 in.
Down Flow Or Cross Flow TypeDown Flow
RadiatorDOWN FLOW
Tank MaterialAluminum
Core Row Quantity3 Row
In1.125
Outlet Diameter1.375 in.
3 Row Tank Size2.5
Trans CoolerNO TRANS
Internal Transmission Oil CoolerNo
3 Row Core Thickness2
Mounting TypeBracket
Out1.375
Core Height11.75 in.
MountingBracket
Core Thickness2.25 in.
Mounting SizeHorizontal - 20 1/2
Outlet LocationDriver
LowerDRIVER
Part FitmentDirect Fit
Vendor Part NumberCC7454
Package Qty1
Package TypeEA
