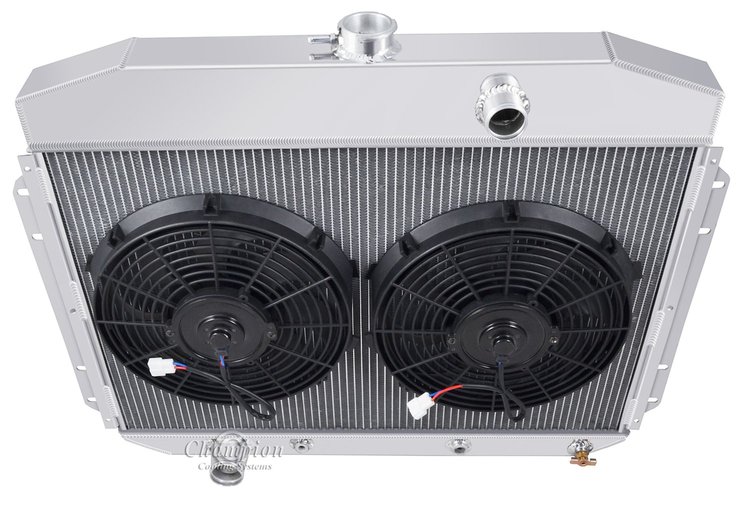

CC8164 All-Aluminum Radiator for 1961-1964 Ford F-Series Truck with Factory V8
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC8164

CC8164 All-Aluminum Radiator for 1961-1964 Ford F-Series Truck with Factory V8

$28498
ShippingShips on 12/07/2026
Lowest PriceLowest Price Guarantee

Items You Need

LED Drop Light with Built-In 120V Outlet

JEGS

LED Drop Light with Built-In 120V Outlet

Part Number : 555-W2237
$2899$31.99
You Save$3.00
Racing Coolant and Antifreeze with LP-3 [1 Gallon]

JEGS

Racing Coolant and Antifreeze with LP-3 [1 Gallon]

Part Number : 555-72316
$2526$36.99
You Save$11.73
Ice Water Racing Coolant [1 Gallon, Non-Glycol]

JEGS

Ice Water Racing Coolant [1 Gallon, Non-Glycol]

Part Number : 555-72314
$2899$31.99
You Save$3.00
8-Piece Screwdriver Set

JEGS

8-Piece Screwdriver Set

Part Number : 555-W904
$1099$12.99
You Save$2.00

Ford
All-Aluminum Radiator
  • 1961-1964 Ford F-Series Truck with Factory V8
  • Champion Core 3-Row
  • Left/Driver Side Inlet; Right/Passenger Side Outlet
  • Includes Automatic Trans Cooler and 13 lb. Radiator Cap
  • Natural Finish
  • Sold Individually

    The Champion Cooling CC8164 All-Aluminum Radiator is a direct-fit 3-row replacement radiator engineered specifically for 1961-1964 Ford F-Series trucks equipped with the factory V8 engine. Champion's brazed-core technology and 100-percent welded seam construction eliminate the epoxy and gaskets used in OEM copper and brass radiators, delivering superior long-term durability and leak resistance. The 3-row Champion core provides significantly more cooling capacity than the original radiator, helping manage heat in stock and mildly modified V8 builds. Driver side inlet and passenger side outlet hose locations match factory Ford routing for a straightforward installation. An automatic transmission cooler is built in, and a 13 lb. radiator cap is included.

    Champion Cooling CC8164 All-Aluminum Radiator Features:

    • Direct Fit for 1961-1964 Ford F-Series Trucks with Factory V8 Engine
    • 3-Row Champion Core Design for Superior Cooling Capacity Over Original Copper and Brass Radiators
    • Brazed-Core Technology with 100-percent Welded Seam Construction; No Epoxy; No Gaskets
    • Driver Side Inlet: 1-1/2 in.; Passenger Side Outlet: 1-3/4 in.; Matches Factory Ford F-Series Hose Routing
    • Built-In Automatic Transmission Cooler
    • Core Dimensions: 17-3/4in. (H) x 26-1/2 in. (W)
    • Overall Dimensions: 24-1/4 in. (H) x 30-1/4 in. (W)
    • Includes 13 lb. Radiator Cap
    • Verify your hose positions before purchasing
    • Natural Aluminum Finish
    • Sold Individually
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height8.0
    Package Width28.0
    Package Length33.0
    Weight23.8 PG
    Overall Height24.25 in.
    Transmission Oil Cooler Fitting Type1/8-27 NPT
    Outlet Diameter1.75 in.
    Inlet LocationPassenger
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    Core Height17.75 in.
    Core Thickness2.25 in.
    Core Width26.5 in.
    Outlet LocationDriver
    Core MaterialAluminum
    Overall Width30.25 in.
    Inlet Diameter1.5 in.
    Down Flow Or Cross Flow TypeDown Flow
    Part FitmentDirect Fit
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Vendor Part NumberCC8164
    Package Qty1
    Package TypeEA
