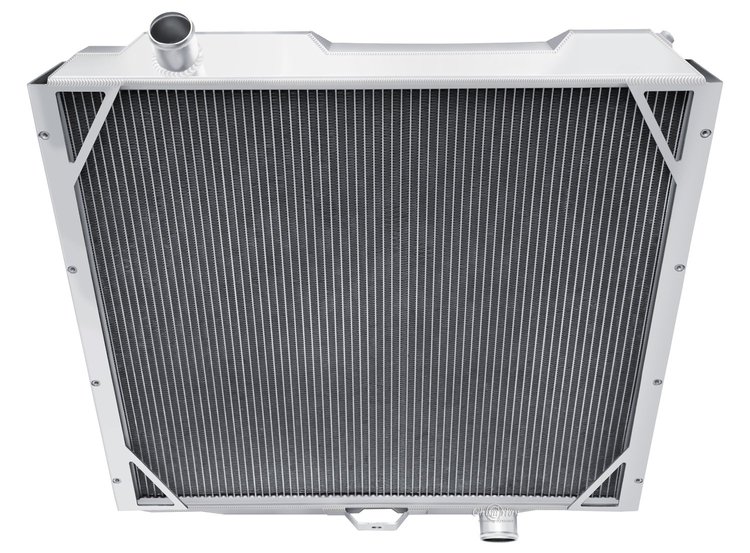

All-Aluminum Radiator 2001-2006 Hummer H1 6.5/6.6L Turbo Diesel
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CCHVB-TD

All-Aluminum Radiator 2001-2006 Hummer H1 6.5/6.6L Turbo Diesel

$34998
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Molded Radiator Hose for 1996-2004 AM General Hummer, Dodge Dakota, Hummer H1 [1.760 in. I.D., 39.600 in. Centerline]

GATES

Molded Radiator Hose for 1996-2004 AM General Hummer, Dodge Dakota, Hummer H1 [1.760 in. I.D., 39.600 in. Centerline]

Part Number : 465-22548
$18426
Molded Radiator Hose for 1960-2006 AM General, Chevrolet, GMC and Hummer Models [2 in. I.D., 9.200 in. Centerline]

GATES

Molded Radiator Hose for 1960-2006 AM General, Chevrolet, GMC and Hummer Models [2 in. I.D., 9.200 in. Centerline]

Part Number : 465-20685
$8641
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
No Spill Coolant Filling Funnel Kit [15-Piece]

JEGS

No Spill Coolant Filling Funnel Kit [15-Piece]

Part Number : 555-51220
$1999$23.29
You Save$3.30

Hummer
All-Aluminum Radiator
  • 2001-2006 Hummer H1 6.5/6.6L Turbo Diesel
  • Champion Core 3-Row

    Dimensions for Champion Cooling CCHVB-TD

    Features:

    • Includes (1) 13 lb. radiator cap
    • 100-percent TIG-welded construction
    • 2 mm thick aluminum tank, fittings, and mounts
    • Brazed core technology with 3/8 in. spaced cooling tubes
    • Max Cool louvered technology with 14-16 cooling fins per inch
    • Stay Cool with Champion Core Radiators

      Champion 3-Row Aluminum Radiators utilize brazed-core technology to ensure the highest quality tubing that provides sufficient cooling capacity for approximately 600 to 800-plus horsepower vehicles. Each direct-fit radiator is built with all-welded seams (without epoxy) and comes complete with a standard radiator cap.

      Show More

      When you’re building a vehicle for high performance, you need to build the entire package, and that includes an upgraded cooling system. A 3 row aluminum radiator is a great upgrade for more efficient and robust cooling capacity, and Champion is the right place to find them.

      Not all radiators are created equal. Champion’s 3 row radiators feature the highest quality tubing and fins and brazed-core technology; they’re designed for a precise drop-in fit and are built without seams or epoxy. With fitments for vehicles from the 70s all the way back to the 30s, Champion radiators are a perfect choice for a restomod project (and if there’s one weak link in vehicles from the 60s and older, it’s their radiators and cooling systems). Cooling systems for select models include all components – the radiator, shroud, dual electric fans, pigtail, controller and all necessary wiring. An electric fan also has the added benefit of reducing parasitic drag on the engine by eliminating a belt-driven fan.

      Champion radiators are also designed with transmission cooler connections, and all are vehicle specific to easily fit with radiator core supports for a true drop-in installation. Champion radiators are designed to deliver cooling capacity for engines up to 600-800 horsepower.

    Part TypeRadiator
    Product LineChampion 3-Row/Core Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height6.5
    Package Width30.5
    Package Length33.0
    Weight30.0 PG
    Overall Thickness3.125 in (79.4 mm)
    Overall Height30.625 in.
    Radiator Cap IncludedYes
    Outlet Quantity1
    Inlet LocationDriver
    Inlet Size (In.)1.750
    Core Width26.75 in.
    Row Quantity3
    Core MaterialAluminum
    Overall Width28.375 in.
    Inlet Diameter1.75 in.
    Tube Size0.375 in (9.5 mm)
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishNatural
    Inlet Quantity1
    Transmission CoolerNo
    Tank MaterialAluminum
    Core Row Quantity3 Row
    Radiator StyleDownflow
    Outlet Size2 in (50.8 mm)
    Radiator MaterialAluminum
    Drain Valve IncludedNo
    Outlet Diameter2 in.
    QuantitySold individually
    Mounting Hardware IncludedNo
    Internal Transmission Oil CoolerNo
    Mounting TypeOEM
    Inlet AttachmentHose
    Core Height24.25 in.
    Core Thickness2.5 in (63.5 mm)
    Mounting Brackets IncludedNo
    Outlet LocationPassenger
    Outlet AttachmentHose
    Fan IncludedNo
    Part FitmentDirect Fit
    Vendor Part NumberCCHVB-TD
    Package Qty1
    Package TypeEA
