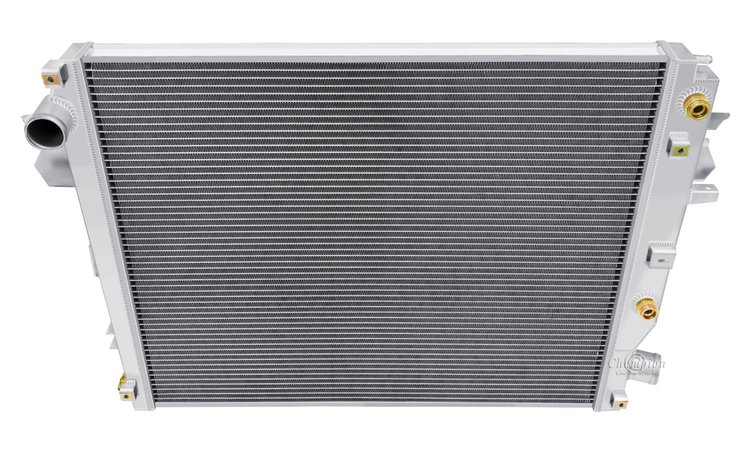

All-Aluminum Replacement Radiator for 2013-2018 Ram Trucks 6.7L Diesel Engine
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CR13490-2

All-Aluminum Replacement Radiator for 2013-2018 Ram Trucks 6.7L Diesel Engine

$31498
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Items You Need

Coolant Additive Kit

JEGS

Coolant Additive Kit

Part Number : 555-72324K
$5197
Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
Cooling System Pressure Tester Kit

JEGS

Cooling System Pressure Tester Kit

Part Number : 555-W89733
$19399$213.99
You Save$20.00
Deluxe Antifreeze Tester

JEGS

Deluxe Antifreeze Tester

Part Number : 555-W1656C
$599$6.99
You Save$1.00

Dodge/Ram Trucks
All-Aluminum Replacement Radiator
  • 2013-2018 Ram 2500, 3500, 4500, 5500 Trucks
  • 2013 Ram 4000 Truck
  • 6.7L Diesel Engine Only
  • Main Radiator for Automatic Transmission Equipped Trucks
  • (2) 5/8 in. Rows
  • Direct Replacement

    Champion Cooling Systems CR13490-2 All-Aluminum Replacement Radiator:

    • Direct replacement for OEM plastic tank radiator
    • Fully tig-welded aircraft-grade aluminum
    • Automatic transmission cooler equipped
    • Stay Cool with Champion Economy Core Radiators

      Champion Cooling System Economy Core (EC) Radiators have two rows of 3/4 in. tubes that provide cooling capacity for approximately 400 to 600+ horsepower. Each brazed-core aluminum radiator has 100-percent welded seams with absolutely no epoxy and includes a standard radiator cap.

    Part TypeRadiator
    Product LineChampion Cooling Systems 2-Row Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height9.0
    Package Width28.0
    Package Length40.0
    Weight33.0 PG
    Overall Height22.625 in.
    Inlet LocationDriver
    Inlet Size (In.)1 3/4
    2 Row Tank Size2.25
    Core Width26.625 in.
    Row Quantity2
    Core MaterialAluminum
    Overall Width35.625 in.
    Inlet Diameter1.75 in.
    Tube Size0.625 in (15.9 mm)
    Down Flow Or Cross Flow TypeCross Flow
    Radiator FinishNatural
    Transmission CoolerYes
    Tank MaterialAluminum
    Core Row Quantity2 Row
    Radiator StyleCrossflow
    Outlet Size1.75 in (44.5 mm)
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting TypeM20-1.5
    Outlet Diameter1.75 in.
    QuantitySold individually
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    2 Row Core Thickness1.625
    Core Height22 in.
    MountingOEM
    Mounting Brackets IncludedYes
    Outlet LocationPassenger
    Part FitmentDirect Fit
    Vendor Part NumberCR13490-2
    Package Qty1
    Package TypeEA
