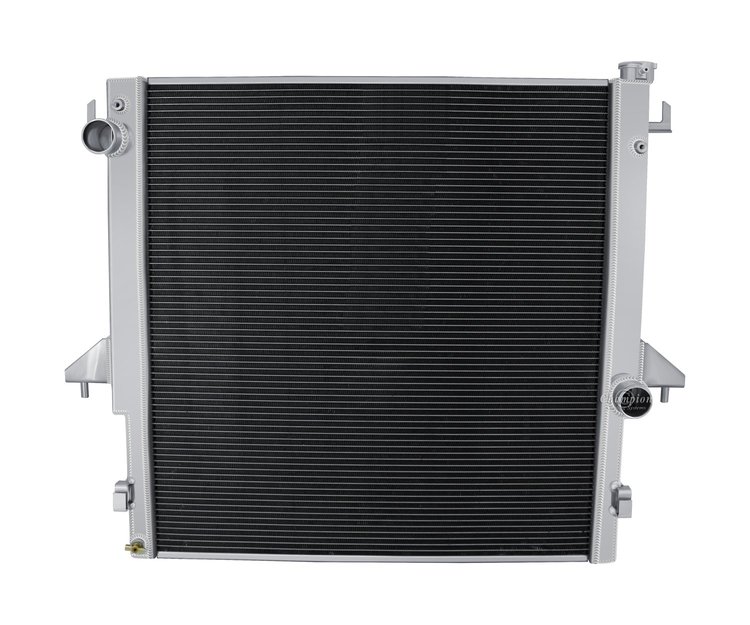

CR2711-2 All-Aluminum Radiator for 2003-2009 Dodge Ram 2500, 3500, 4000. 4500, 5500 w/ 5.9L-6.7L Diesel Engine
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CR2711-2

CR2711-2 All-Aluminum Radiator for 2003-2009 Dodge Ram 2500, 3500, 4000. 4500, 5500 w/ 5.9L-6.7L Diesel Engine

$30099
ShippingShips on 10/12/2026
Lowest PriceLowest Price Guarantee
Best Value
Ready-Fit Aluminum Radiator for Select 2003-2009 RAM 2500-3500 Trucks w/5.9L & 6.7L Cummins Diesel

555-51949

Ready-Fit Aluminum Radiator for Select 2003-2009 RAM 2500-3500 Trucks w/5.9L & 6.7L Cummins Diesel

$42099

Ram
All-Aluminum Radiator
  • 2003-2009 Dodge Ram 2500, 3500, 4000. 4500, 5500 w/ 5.9L-6.7L Diesel Engine
  • CR Series 2-Row Core

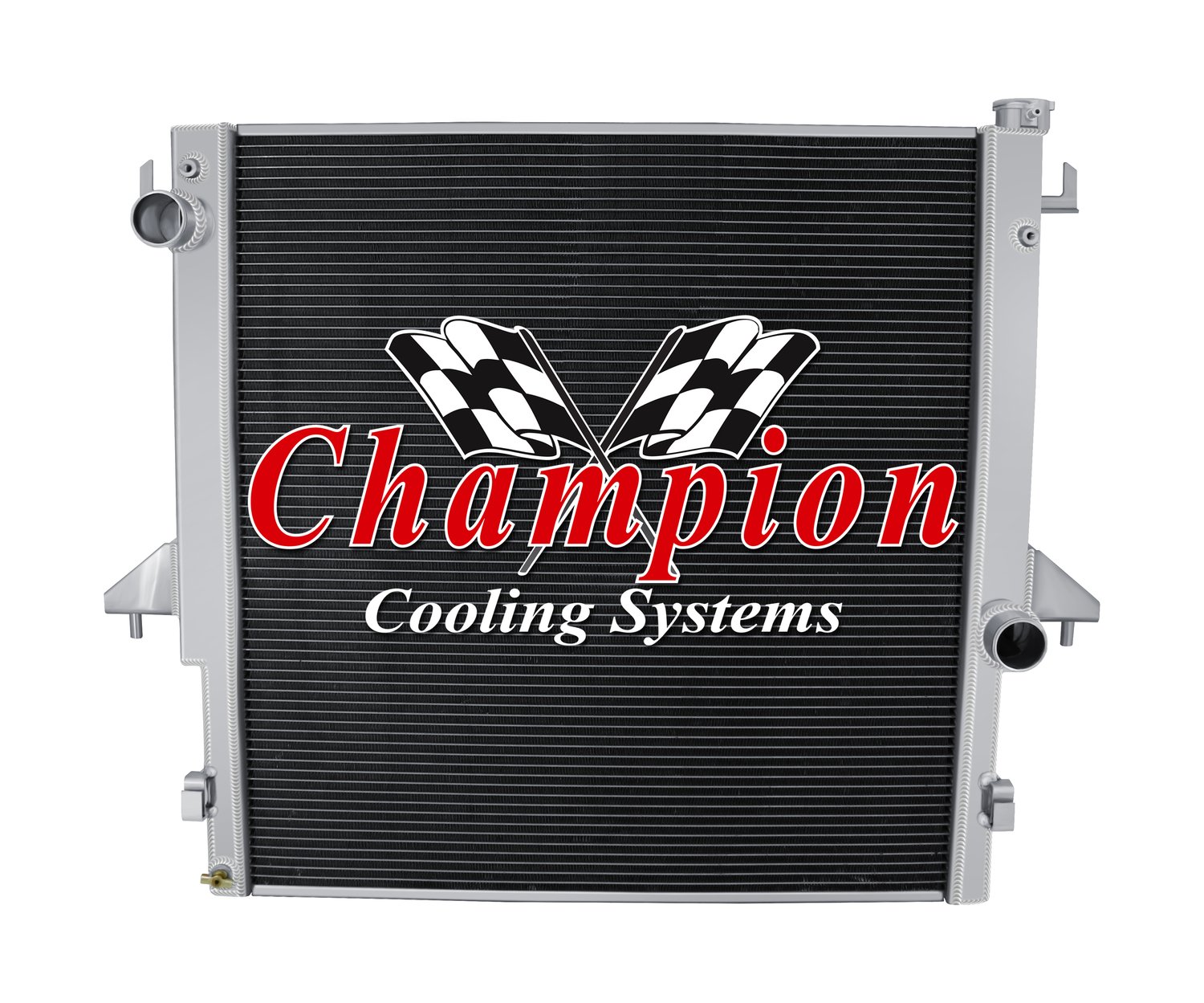

    Champion Cooling Systems CR2711-2 All-Aluminum Radiator

    The Champion Cooling CR2711-2 All-Aluminum CR Series Radiator is a high-quality radiator designed for 2003-2009 Dodge Ram Trucks with a 5.9L-6.7L Diesel Engine. It is made entirely of aluminum, including brackets, and features an integrated trans cooler. The fittings and tanks are made of aircraft-grade 2mm thick aluminum, and the filler neck is billet. The radiator has 3/8" spaced tubes and 14-16 fins per inch. This radiator comes with an OEM-style brass petcock.

    Champion Cooling Systems CR2711-2 All-Aluminum Radiator Features:

    • Direct replacement for OEM plastic tank radiator
    • Fully tig-welded aircraft-grade aluminum
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Package Height7.0
    Package Width34.0
    Package Length39.0
    Weight24.0 PG
    Part CategoryPerformance Parts
    Overall Height29.50 in.
    Outlet Size2 in (50.8 mm)
    Inlet LocationUpper driver side
    Mounting TypeOEM
    Inlet Size (In.)2 in.
    Core Height28.625 in.
    Core Thickness1.625 in.
    Core Width27.00 in.
    Row Quantity2
    Outlet LocationLower passenger side
    Core MaterialAluminum
    Overall Width37.875 in.
    Down Flow Or Cross Flow TypeCross Flow
    Radiator FinishNatural
    Part FitmentDirect Fit
    Vendor Part NumberCR2711-2
    Package Qty1
    Package TypeEA
