Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CS6770TP

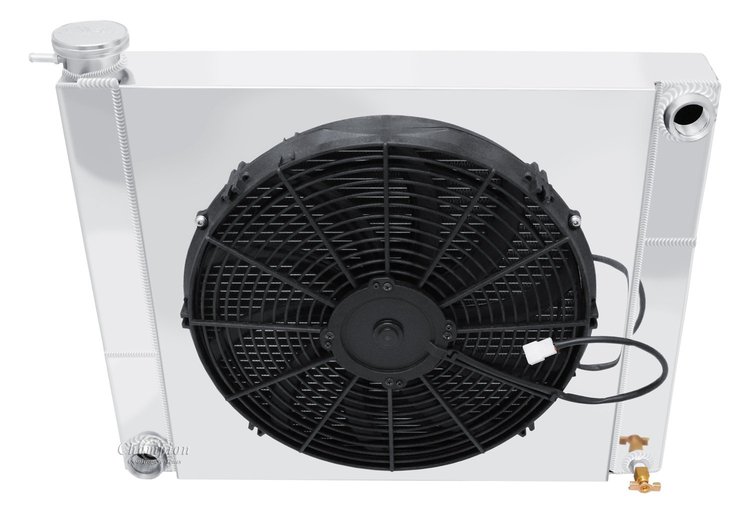

CS6770TP Custom Shop Triple Pass Radiator Module for 1967-1970 Ford Mustang
$83899
Ships Tomorrow
Lowest Price GuaranteeFord
Mustang
Mustang
Custom Shop Radiator Module1967-1970 Ford Mustang Triple-Pass 2-Row Crossflow 1 in. Tubes Upper Passenger/Lower Driver Hose
Champion Cooling Systems CS6770TP Custom Shop Radiator Module for 1967-1970 Ford Mustang Features:
- 2 Row 1 in. Tubes
- Crossflow
- Triple Pass
- Single 16 in. Turbo Series Fan
- Polished stainless steel mounting hardware
- Polished radiator and shroud are welded together
- 5/16 in.-18 welded bungs in the radiator for mounting
- Standard 13 lb. radiator cap included
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height5.0
Package Width21.0
Package Length26.0
Weight22.0 PG
Overall Thickness2.25 in (57.2 mm)
Overall Height19.75 in (501.7 mm)
Outlet Size-16 AN O-ring
Inlet Size-16 AN O-ring
Fan QuantitySingle
Radiator Cap IncludedYes
Radiator MaterialAluminum
Mounting Hardware IncludedYes
Inlet LocationUpper passenger side
2 Row Core Thickness2.25 (57.15 mm)
Core Height17.5 in (444.5 mm)
Core Thickness2.25 in (57.15 mm)
Fan Diameter16 in (406.4 mm)
Core Width19.125 in (485.775 mm)
Row Quantity2
Outlet LocationLower driver side
Overall Width24 in (609.6 mm)
Radiator TypePerformance Replacement
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerNo
Radiator StyleCrossflow
Vendor Part NumberCS6770TP
Package Qty1
Package TypeEA
