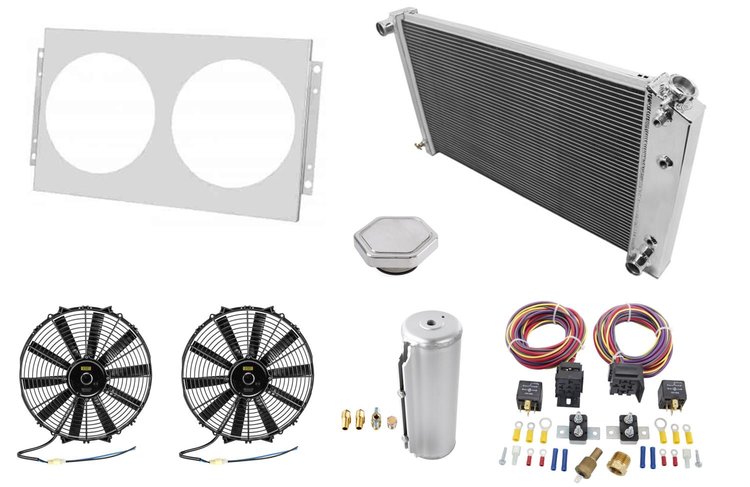

Kit Includes:

• Champion Core 4 Row Radiator - p/n 166-MC161
• Champion Aluminum Fan Shroud - p/n 166-FS161
• (2) JEGS 14" Low Profile Electric Fan- p/n 555-52138
• JEGS Billet Round Recirculating/Overflow Tank/Catch Can - p/n 555-51135
• JEGS Upgraded Polished 16lb Radiator Cap - p/n 555-51162
• JEGS Temp-Controlled Fan Wiring Harness & Relay Kit - p/n 555-10570



  Radiator Specifications:
  Core Dimensions:	17" (H) x 28-1/4" (W)
  Overall Dimensions:	18-5/8" (H) x 33" (W)
  Hose Locations:	Inlet: Driver Side Outlet: Passenger Side
  Hose Fittings:	Inlet: 1-1/2" Outlet: 1-1/2"
  Transcooler:	1/2-20 Straight Thread G1/4
  Mount Type:	Saddle
