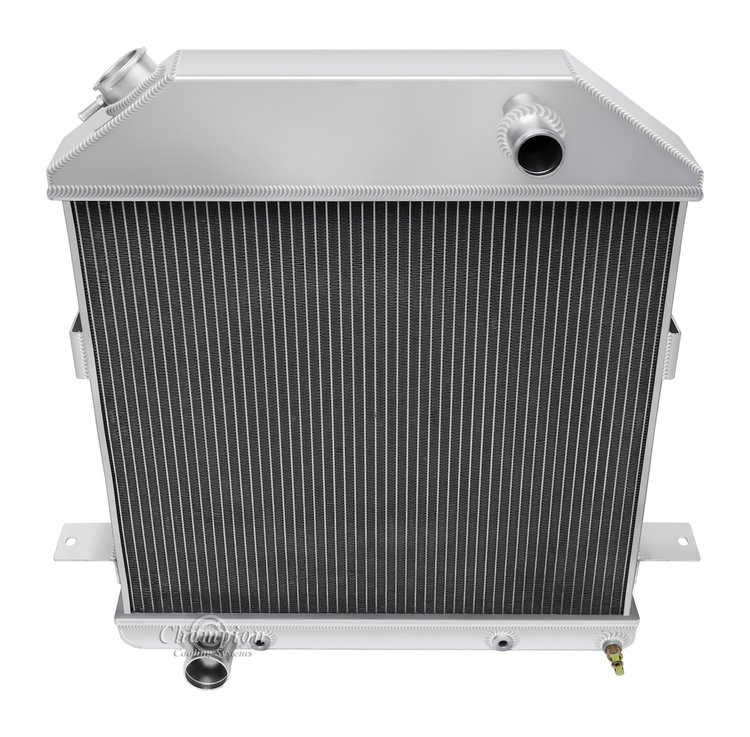

All-Aluminum Radiator 1939-1941 Ford Deluxe V8, 1940 Ford Standard V8, 1939-1940 Mercury Car V8 (Ford Engine Configuration)
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-MC4001FD

All-Aluminum Radiator 1939-1941 Ford Deluxe V8, 1940 Ford Standard V8, 1939-1940 Mercury Car V8 (Ford Engine Configuration)

$34498
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

Ford
All-Aluminum Radiator
  • 1939-1941 Ford Deluxe V8
  • 1940 Ford Standard V8
  • 1939-1940 Mercury Car V8 (Ford Engine Configuration)
  • Monster Core 4-Row
  • (1) 16 lb. Capacity Radiator Cap Included

    Champion Cooling Systems MC4001FD

    Features:

    • 2 mm thick all-aluminum tank, brackets, and fittings
    • 100% tig-welded construction
    • Billet radiator fill neck
    • 14-16 Max Cool louvered cooling fins per inch
    • Brazed Core technology with 3/8 in. spaced tubes
    • OEM-style brass petcock
    • Monster Cooling-Series Radiators

      Champion Cooling System Monster Cooling-Series Radiators have four rows of 11/16 inch tubes with a cooling capacity to accommodate 800-1200+ horsepower. All Champion Radiators deliver the highest craftsmanship standards with 100 percent welded seams, brazed cores, and no epoxy.

      Show More

      When heat management is mission-critical, nothing beats a robust multi-row cooler built to handle serious performance. Champion’s 4-row aluminum radiators offer the kind of capacity and efficiency that high-power and high-stress engines demand. These radiators use four parallel cooling passes packed into a dense core—providing superior thermal transfer compared to conventional 2- or 3-row designs.

      Each Champion 4-row unit is constructed with brazed aluminum tubes, TIG-welded end tanks, and thick cores (typically around 2¾″ deep) to maximize surface area and coolant volume. These radiators are often rated to support 800–1,200+ horsepower, making them suitable for heavily modified street cars, boosted builds, and even competition machines.

      One of the standout benefits is improved temperature control under load. A thicker core and additional flow paths help dissipate heat faster, maintaining lower engine temps during long highway runs, hard acceleration, or aggressive drag runs. That means less risk of boil-over, heat soak, or detonation in tuned engines.

      Fitment is also taken seriously — Champion offers both universal and vehicle-specific 4-row options with multiple inlet/outlet arrangements. Each radiator includes drain petcock, radiator cap, and provisions for transmission cooler lines in many applications.

      If your build exceeds the limits of stock cooling or you’re chasing high-end performance, investing in a true 4 core aluminum radiator gives you peace of mind. Choose the Champion 4-row radiator with dimensions and hose layout that match your chassis, and you’re upgrading to cooling capacity that can keep pace with your engine’s ambition.

    Part TypeRadiator
    Product LineChampion Cooling Systems 4-Row Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height7.5
    Package Width28.0
    Package Length28.0
    Weight19.02 PG
    Overall Thickness3.125 in (79.4 mm)
    Overall Height25.125 in.
    4 Row Tank Size3.125
    Radiator Cap IncludedYes
    Outlet Quantity1
    Inlet LocationPassenger
    Inlet Size (In.)1 1/2
    Core Width20.5 in.
    Row Quantity4
    Core MaterialAluminum
    Overall Width25.5 in.
    Inlet Diameter1.5 in.
    Down Flow Or Cross Flow TypeDown Flow
    Radiator FinishPolished
    Inlet Quantity1
    Transmission Cooler1/8-27 NPT
    Tank MaterialAluminum
    Core Row Quantity4 Row
    Radiator StyleDownflow
    Outlet Size1.75 in (44.5 mm)
    Radiator MaterialAluminum
    Transmission Oil Cooler Fitting Type1/8-27 NPT
    Outlet Diameter1.75 in.
    QuantitySold individually
    Internal Transmission Oil CoolerYes
    Mounting TypeFlanges
    Core Height19 in.
    Core Thickness2.75 in.
    Outlet LocationDriver
    Fan IncludedNo
    Part FitmentDirect Fit
    Vendor Part NumberMC4001FD
    Package Qty1
    Package TypeEA
