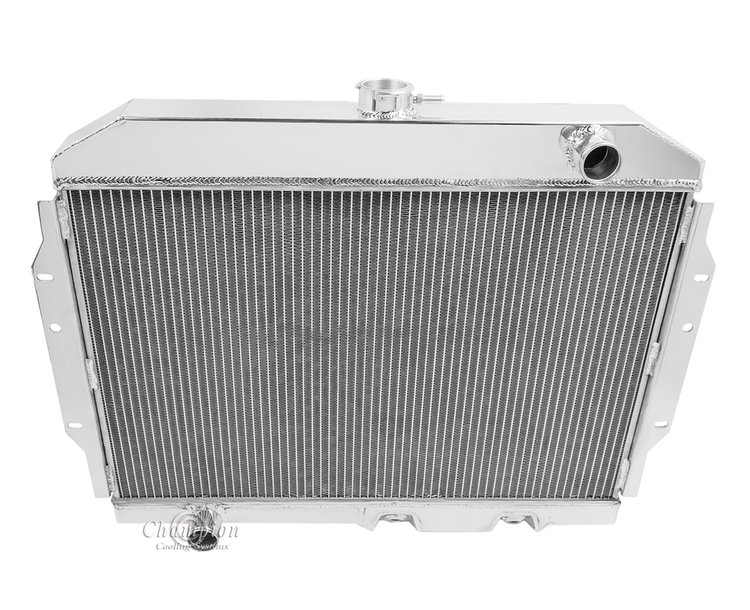

All-Aluminum Radiator for Select 1958-1974 AMC Models [4-Core]
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-MC407

All-Aluminum Radiator for Select 1958-1974 AMC Models [4-Core]

$34498
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Round Recirculating Overflow Catch Can Tank [Billet Aluminum]

JEGS

Round Recirculating Overflow Catch Can Tank [Billet Aluminum]

Part Number : 555-51135
$8999$98.99
You Save$9.00
Super-Duty Coolant/Antifreeze 1 Gallon

BE COOL RADIATORS

Super-Duty Coolant/Antifreeze 1 Gallon

Part Number : 134-25001
$4599
CCFK12 Swept-Blade 12 in. Electric Cooling Fan

CHAMPION COOLING SYSTEMS

CCFK12 Swept-Blade 12 in. Electric Cooling Fan

Part Number : 166-CCFK12
$5999
CCFKRL Universal Electric Cooling Fan Relay Kit

CHAMPION COOLING SYSTEMS

CCFKRL Universal Electric Cooling Fan Relay Kit

Part Number : 166-CCFKRL
$6999

AMC
All-Aluminum Radiator
  • 1958-1974 AMC AMX, Javelin, Marlin, Matador, Rambler, Rebel
  • Monster Core 4-Row

    Champion Cooling MC407 4-Core Radiator NOTE:

    • The mounting bracket is on the engine face of the radiator
    Radiator Specifications:
    Core Dimensions:15-7/8" (H) x 24-1/8" (W)
    Overall Dimensions:23-1/4" (H) x 27-1/4" (W)
    Hose Locations:In: Passenger
    Out: Driver
    Hose Fittings:In: 1-1/2"
    Out: 1-1/2"
    Trans cooler:1/2-20 Straight Thread G1/4
    Mount Type:Bracket

    Champion Cooling MC407 4-Core Radiator Fits These AMC Applications:

    • 1974 Ambassador
    • 1968-1974 AMX
    • 1968-1974 Javelin
    • 1968-1971 Javelin SST
    • 1965-1962 Marlin
    • 1971-1974 Matador
    • 1960-1962 Rambler
    • 1958-1970 Rebel
    • 1968-1974 Wagon
    • Monster Cooling-Series Radiators

      Champion Cooling System Monster Cooling-Series Radiators have four rows of 11/16 inch tubes with a cooling capacity to accommodate 800-1200+ horsepower. All Champion Radiators deliver the highest craftsmanship standards with 100 percent welded seams, brazed cores, and no epoxy.

      Show More

      When heat management is mission-critical, nothing beats a robust multi-row cooler built to handle serious performance. Champion’s 4-row aluminum radiators offer the kind of capacity and efficiency that high-power and high-stress engines demand. These radiators use four parallel cooling passes packed into a dense core—providing superior thermal transfer compared to conventional 2- or 3-row designs.

      Each Champion 4-row unit is constructed with brazed aluminum tubes, TIG-welded end tanks, and thick cores (typically around 2¾″ deep) to maximize surface area and coolant volume. These radiators are often rated to support 800–1,200+ horsepower, making them suitable for heavily modified street cars, boosted builds, and even competition machines.

      One of the standout benefits is improved temperature control under load. A thicker core and additional flow paths help dissipate heat faster, maintaining lower engine temps during long highway runs, hard acceleration, or aggressive drag runs. That means less risk of boil-over, heat soak, or detonation in tuned engines.

      Fitment is also taken seriously — Champion offers both universal and vehicle-specific 4-row options with multiple inlet/outlet arrangements. Each radiator includes drain petcock, radiator cap, and provisions for transmission cooler lines in many applications.

      If your build exceeds the limits of stock cooling or you’re chasing high-end performance, investing in a true 4 core aluminum radiator gives you peace of mind. Choose the Champion 4-row radiator with dimensions and hose layout that match your chassis, and you’re upgrading to cooling capacity that can keep pace with your engine’s ambition.

    Part TypeRadiator
    Product LineChampion Cooling Systems 4-Row Aluminum Radiators
    BrandCHAMPION COOLING SYSTEMS
    Package Height24.0
    Package Width27.0
    Package Length29.5
    Weight22.3 PG
    Overall Height23.25 in.
    Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
    Outlet Diameter1.5 in.
    Inlet LocationPassenger
    Internal Transmission Oil CoolerYes
    Mounting TypeBracket
    Core Height15.875 in.
    Core Thickness2.75 in.
    Core Width24.125 in.
    Outlet LocationDriver
    Core MaterialAluminum
    Overall Width27.25 in.
    Inlet Diameter1.5 in.
    Down Flow Or Cross Flow TypeDown Flow
    Part FitmentDirect Fit
    Tank MaterialAluminum
    Core Row Quantity4 Row
    Vendor Part NumberMC407
    Package Qty1
    Package TypeEA
