All-Aluminum Radiator
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-MC41CH

All-Aluminum Radiator

$37498
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Funnel [8.5 in. Overall Length]

JEGS

Funnel [8.5 in. Overall Length]

Part Number : 555-W4064
$599$6.99
You Save$1.00
16705 Service Pro Antifreeze Concentrate [1 gallon]

GLOCKNER OIL

16705 Service Pro Antifreeze Concentrate [1 gallon]

Part Number : 708-16705
$1999
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Water Wetter Supercoolant 12oz Bottle

RED LINE OIL

Water Wetter Supercoolant 12oz Bottle

Part Number : 816-80204
$1599

Ford

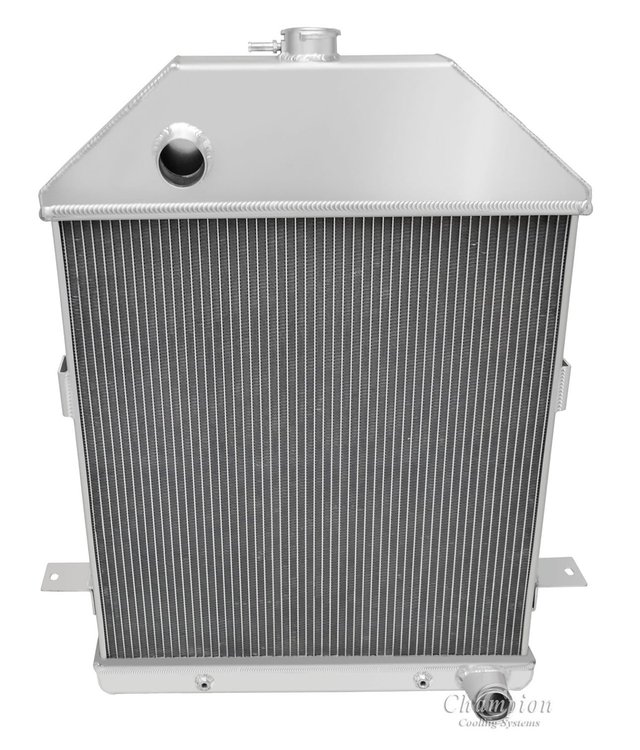

    All-Aluminum Radiator
  • 1941 Ford Truck with Chevy V8 Conversion
  • Monster Core 4-Row
  • Standard 13 lb. Radiator Cap Included

    Monster Cooling-Series Radiators

    Champion Cooling System Monster Cooling-Series Radiators have four rows of 11/16 inch tubes with a cooling capacity to accommodate 800-1200+ horsepower. All Champion Radiators deliver the highest craftsmanship standards with 100 percent welded seams, brazed cores, and no epoxy.

    Show More

    When heat management is mission-critical, nothing beats a robust multi-row cooler built to handle serious performance. Champion’s 4-row aluminum radiators offer the kind of capacity and efficiency that high-power and high-stress engines demand. These radiators use four parallel cooling passes packed into a dense core—providing superior thermal transfer compared to conventional 2- or 3-row designs.

    Each Champion 4-row unit is constructed with brazed aluminum tubes, TIG-welded end tanks, and thick cores (typically around 2¾″ deep) to maximize surface area and coolant volume. These radiators are often rated to support 800–1,200+ horsepower, making them suitable for heavily modified street cars, boosted builds, and even competition machines.

    One of the standout benefits is improved temperature control under load. A thicker core and additional flow paths help dissipate heat faster, maintaining lower engine temps during long highway runs, hard acceleration, or aggressive drag runs. That means less risk of boil-over, heat soak, or detonation in tuned engines.

    Fitment is also taken seriously — Champion offers both universal and vehicle-specific 4-row options with multiple inlet/outlet arrangements. Each radiator includes drain petcock, radiator cap, and provisions for transmission cooler lines in many applications.

    If your build exceeds the limits of stock cooling or you’re chasing high-end performance, investing in a true 4 core aluminum radiator gives you peace of mind. Choose the Champion 4-row radiator with dimensions and hose layout that match your chassis, and you’re upgrading to cooling capacity that can keep pace with your engine’s ambition.

Part TypeRadiator
Product LineChampion Cooling Systems 4-Row Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Overall Thickness3.125 in (79.4 mm)
Overall Height29.5 in.
Radiator Cap IncludedYes
Inlet LocationDriver
Inlet Size (In.)1.5
Core Width20.5 in.
Row Quantity4
Core MaterialAluminum
Overall Width25.375 in.
Inlet Diameter1.5 in.
Down Flow Or Cross Flow TypeDown Flow
Radiator FinishPolished
Transmission CoolerYes
Tank MaterialAluminum
Core Row Quantity4 Row
Radiator StyleDownflow
Outlet Size1.75 in (44.5 mm)
Radiator MaterialAluminum
Transmission Oil Cooler Fitting Type1/2-20 Straight Thread, Inverted Flare
Outlet Diameter1.75 in.
QuantitySold individually
Mounting Hardware IncludedNo
Internal Transmission Oil CoolerYes
Mounting TypeBracket
Core Height21 in.
Core Thickness2.75 in.
Mounting Brackets IncludedNo
Outlet LocationPassenger
Part FitmentDirect Fit
Vendor Part NumberMC41CH
Package Qty1
Package TypeEA
