Drag Racing Aluminum Radiator Module
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-RS16-14

Drag Racing Aluminum Radiator Module

$92799
ShippingShips on 11/19/2026
Lowest PriceLowest Price Guarantee

Items You Need

Radiator Hose Adapter Fitting -12AN Male O-Ring Port to 1-1/4" O.D. Inlet

CHAMPION COOLING SYSTEMS

Radiator Hose Adapter Fitting -12AN Male O-Ring Port to 1-1/4" O.D. Inlet

Part Number : 166-RS-1.25
$4199
Radiator Hose Adapter Fitting -12AN Male O-Ring Port to 1-1/2" O.D. Inlet

CHAMPION COOLING SYSTEMS

Radiator Hose Adapter Fitting -12AN Male O-Ring Port to 1-1/2" O.D. Inlet

Part Number : 166-RS-1.50
$3499
Radiator Hose Adapter Fitting -12AN Male O-Ring Port to -12AN Male

CHAMPION COOLING SYSTEMS

Radiator Hose Adapter Fitting -12AN Male O-Ring Port to -12AN Male

Part Number : 166-RS-12
$1817$23.99
You Save$5.82
Radiator Hose Adapter Fitting -12AN Male O-Ring Port to -16AN Male

CHAMPION COOLING SYSTEMS

Radiator Hose Adapter Fitting -12AN Male O-Ring Port to -16AN Male

Part Number : 166-RS-16
$3597$44.99
You Save$9.02

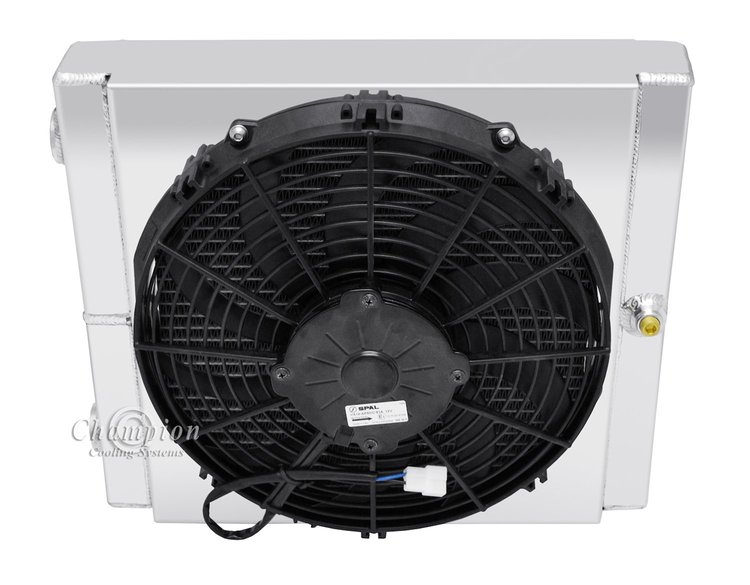

Drag Racing Aluminum Radiator Module
    Drag Racing Aluminum Radiator Module
    Dimensions:
  • Overall: 16" W x 14" H
  • Core: 13.5" W x 13.5" H
  • Thickness With Fan: 5.5"

    Superior Vehicle Cooling

    Champion Drag Racing Style Aluminum Radiator Modules are the lightest, most cooling efficient radiator and fan combos on the market today. They feature Champion electric fans for unmatched cooling power that you can trust. Never worry about overheating again with a single 1-1/2" core and dual-pass crossflow design. Like all Champion radiators and modules, they are built with 100% welded seams, brazed core technology, and absolutely no epoxy. Manufactured at an ISO-certified facility to the highest standards and workmanship, only the top quality aluminum is used to make sure you get only the best.

    Note: Radiator Hose Adapters (-12AN Port Adapter Fittings) are required for installation and sold separately below!

Part TypeRadiator
Product LineChampion Cooling Systems Drag Racing Aluminum Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height9.5
Package Width23.0
Package Length36.0
Weight15.88 PG
Overall Height14 in.
Outlet Diameter-12 ORB Female
Inlet LocationDriver
Internal Transmission Oil CoolerNo
Mounting TypeMounting Bung 1/4-20
Core Height13.5 in.
Core Thickness1.5 in.
Core Width13.5 in.
Outlet LocationDriver
Core MaterialAluminum
Overall Width16 in.
Inlet Diameter-12 ORB Female
Down Flow Or Cross Flow TypeCross Flow
Part FitmentDirect Fit
Tank MaterialAluminum
Core Row Quantity1 Row
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
