![ST161-BLKK All-Aluminum Radiator Kit for Select 1963-1990 GM Fullsize V6/V8 Models [Black Finish]](https://www.jegs.com/images/mini_750/100/166/166-st161-blkk.jpg)
Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-ST161-BLKK

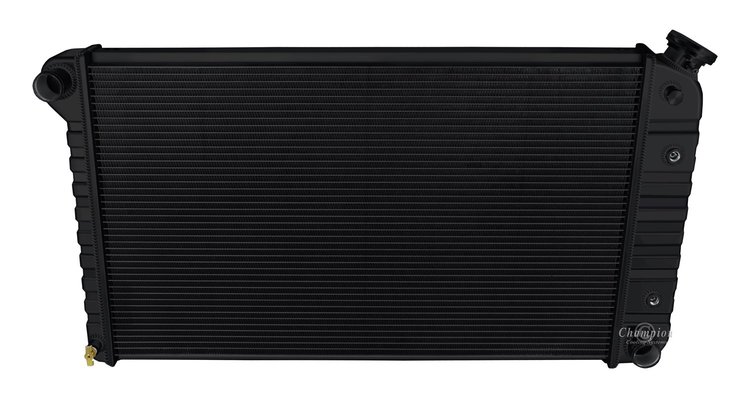

ST161-BLKK All-Aluminum Radiator Kit for Select 1963-1990 GM Fullsize V6/V8 Models [Black Finish]
$82195
2 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeGM
All-Aluminum Radiator KitSelect 1963-1990 GM Fullsize V6/V8 Models Semi-Gloss Black Finish Includes:
- Aluminum Radiator
- Aluminum Fan Shroud
- (2) 14 in. Electric Cooling Fans
- Wiring Harness & Relay Kit
Champion Cooling Systems ST161-BLKK Kit Features:
- Champion Cooling Systems All-Aluminum Radiator [Black Finish] ST161-BLK
- All-Aluminum Radiator
- Select 1963-1990 GM Fullsize V6/V8 Models
- 17 in. x 28 1/4 in. Core
- 1 1/2 in. Inlet: Left/Driver Side-Top
- 1 1/2 in. Outlet: Right/Passenger Side-Bottom
- 3/8 in. Tubes
- Cross Flow
- 3-Row
- Semi-Gloss Black Finish
- Champion Cooling Systems Aluminum Fan Shroud FS161
- Aluminum Fan Shroud
- Fits 166-(EC/CC/MC)161 Radiators
- Overall Dimensions: 17 in. H x 28-1/4 in. W
- Number Of Fans: 2
- Fan Size: 14 in.
- (2) Champion Cooling Systems Swept-Blade 14 in. Electric Cooling Fan CCFK14
- Swept-Blade Electric Cooling Fan
- Size: 14 in.
- CFM: 1,200
- Thickness: 3.500 in.
- Amp Draw: 12.0
- Nylon Mounting Kit Included
- JEGS Dual Fan Wiring Harness & Relay Kit 30 Amp [185-degrees on 170-degrees off] 555-10570
- (1) 185-degrees On / 170-degrees Off Sensor for 180-degree Thermostat
- (80 in.) 10-18 Ga. High Temp Cross Link Wire
- (2) 30 Amp Relay
- (2) 30 Amp Circuit Breaker
- Hardwares
Stay Cool and Look Cool with Champion Core Semi-Gloss Black Radiators!
Champion Cooling introduces their 3-Row Aluminum Radiators now with a long-lasting semi-gloss black finish. This new water-based coating is resistant to chipping, peeling, chemicals and is heat tolerant up to 300 degrees F. Expect the same sufficient cooling capacity for strip or strip vehicles, brazed-core technology with all-welded seams (without epoxy) and included standard radiator cap, now all with an eye-catching finish!
Part TypeRadiator
Product LineChampion Cooling Systems 3-Row Aluminum Semi-Gloss Black Radiators
BrandCHAMPION COOLING SYSTEMS
Part CategoryReplacement Parts
Overall Height18 5/8 in.
Outlet Size1 1/2 in.
Radiator Cap IncludedYes
Inlet LocationLeft/Driver Side
MaterialAluminum
Mounting TypeSaddle
Core Height17 in.
Core Thickness2 1/4 in.
Core Width28 1/4 in.
Outlet LocationRight/Passenger Side
Overall Width33 in.
Down Flow Or Cross Flow TypeCross Flow
Radiator FinishSemi-Gloss Black
Transmission Cooler1/2-20 straight, inverted flare
Part FitmentDirect Fit
Inlet Size In1 1/2 in.
Radiator StyleCross Flow
Package Qty1
Package TypeEA
